B3W-4050S参数规格_中文资料_数据手册PDF

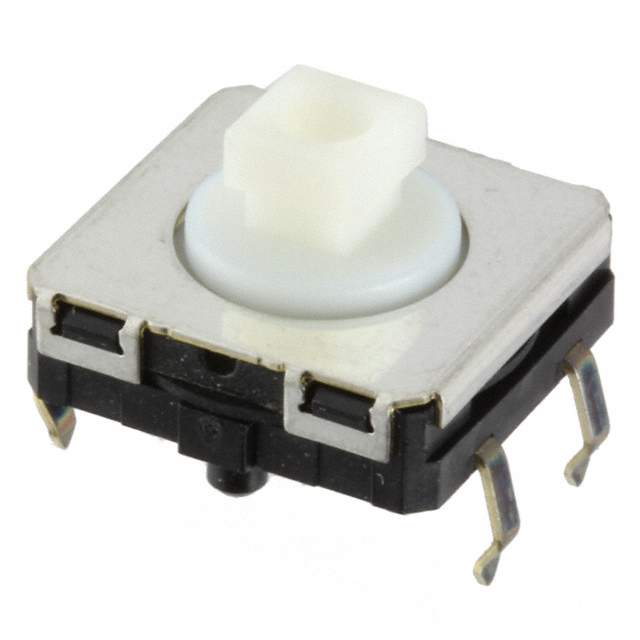

B3W-4050S概述

Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

得捷:
SWITCH TACTILE SPST-NO 0.05A 24V

立创商城:
B3W-4050S

艾睿:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

Chip1Stop:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

Newark:
# OMRON ELECTRONIC COMPONENTS B3W-4050S Pushbutton Switch,STRAIGHT,SPST,OFF-ON,PC TAIL W/RETNN Terminal,PCB Hole Count:6

MASTER:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

Online Components:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

Electro Sonic:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

B3W-4050S中文资料参数规格

技术参数

额定电流Max 0.05A @24VDC

工作温度Max 70 ℃

工作温度Min -25 ℃

额定电压DC Max 24 V

接触电阻Max 100 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 12 mm

高度 7.3 mm

封装 -

物理参数

工作温度 -25℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买B3W-4050S

型号： B3W-4050S

描述：Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycles 1.96N Thru-Hole Stick

替代型号B3W-4050S
