BFC233860103

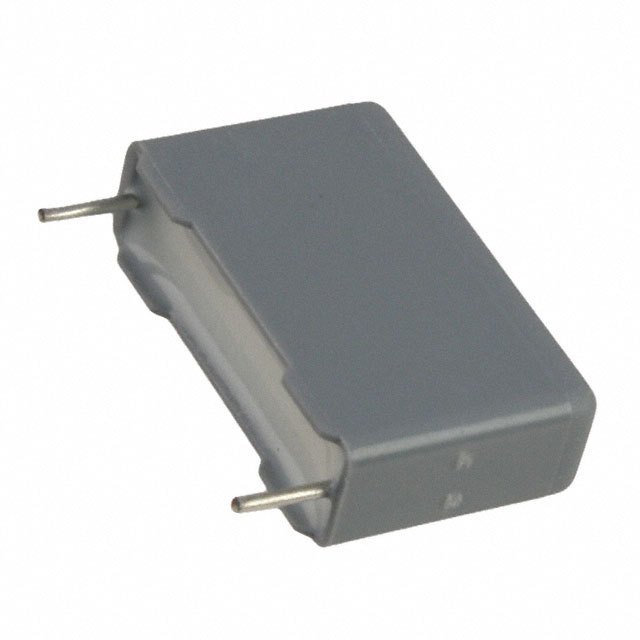

BFC233860103图片1

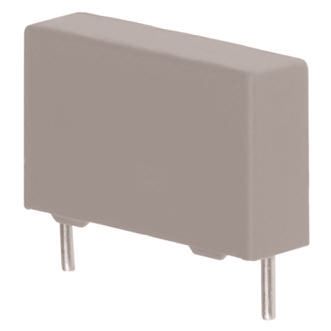

BFC233860103图片2
BFC233860103图片3
BFC233860103图片4
BFC233860103图片5
BFC233860103概述

VISHAY  BFC233860103.  膜电容, MKP3386 Y2系列, 0.01 µF, ± 20%, Y2, 径向引线, 105 °C

The is a radial leaded fixed interference suppression Film Capacitor with polypropylene film dielectric and metallised film electrodes. The MKP338 6 Y2 series film capacitor has tinned wire leads. It assists energy conversion while providing low losses, high efficiency and long life. Y2 capacitor ensures safety on pulse up to 5kV in line bypass applications. To help reducing emission and increasing the immunity of radio interference, electromagnetic interference suppression film capacitors EMI capacitors are playing a major role in all kind of applications. This capacitor is put directly parallel over the mains at the input of the appliances.

.
UL94V-0 flame-retardant epoxy resin sealed plastic case encapsulation
.
300VAC at 50 to 60Hz Rated AC voltage
BFC233860103中文资料参数规格
技术参数

额定电压DC 1000 V

额定电压AC 440 V

绝缘电阻 15.0 GΩ

电容 10000 pF

容差 ±20 %

工作温度Max 105 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 2

封装 Radial, Box

引脚间距 15 mm

外形尺寸

长度 17.5 mm

宽度 5 mm

高度 11 mm

脚长度 3.50 mm

封装 Radial, Box

引脚间距 15 mm

物理参数

介质材料 Polypropylene

工作温度 -55℃ ~ 105℃

其他

包装方式 Each

制造应用 汽车级;EMI、RFI 抑制, RF Communications

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买BFC233860103
型号: BFC233860103
描述:VISHAY  BFC233860103.  膜电容, MKP3386 Y2系列, 0.01 µF, ± 20%, Y2, 径向引线, 105 °C
替代型号BFC233860103
型号/品牌 代替类型 替代型号对比

BFC233860103

Vishay Semiconductor 威世

当前型号

当前型号

BFC233660103

威世

完全替代

BFC233860103和BFC233660103的区别

BFC2 33862103

威世

类似代替

BFC233860103和BFC2 33862103的区别
