电源负载开关, 低压侧, N-MOSFET, 1输出, 0.05欧姆导通电阻, 40 V负载, 15 A, TO-252-5
Do your circuit specifications require switching between low and high currents and voltages? Technologies" low side power switch is your solution. This charge controller has single output. It features 0.05 Ohm switch on resistance. This device has a supply current of 6 mA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This charge controller has an operating temperature range of -40 °C to 150 °C.
输出接口数 1
输出电流 3 A
供电电流 6 mA
针脚数 5
输入电压Max 5.5 V
输出电流Max 3 A
输出电流Min 3 A
输入数 1
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 5.5 V
引脚数 5

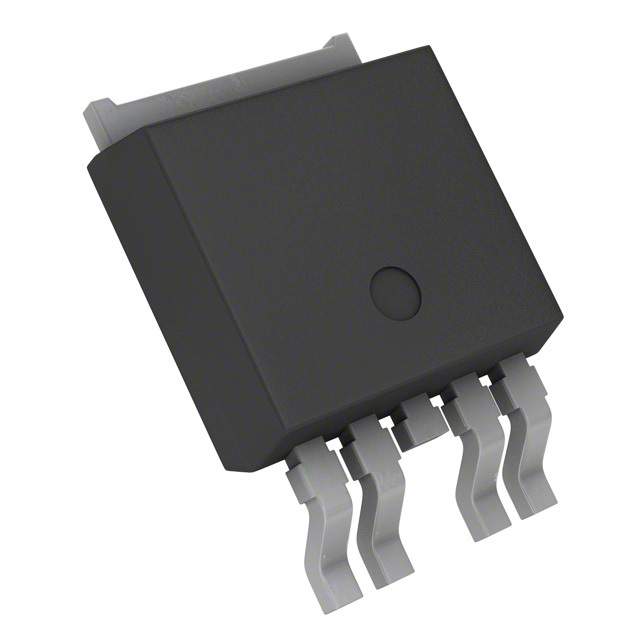

封装 TO-252-5
封装 TO-252-5
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Relay replacement, solenoids, small motors
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
