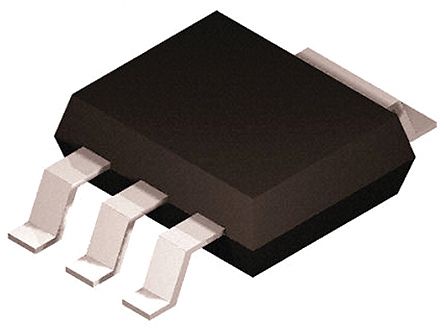

INFINEON BTS4142NHUMA1 智能电源开关, SIPMOS技术, 高压侧, 1路输出, 2.2A, SOT-223-4
PROFET 智能高侧电源开关,单通道,
过载保护
电流限制
短路保护
热关闭
过电压保护
静电放电 ESD 保护
得捷:
IC PWR SWTCH N-CHAN 1:1 SOT223-4
欧时:
Infineon BTS4142NHUMA1, 单输出 智能电源开关, 高侧开关, 12 → 45V, 3 + Tab引脚 SOT-223封装
贸泽:
Power Switch ICs - Power Distribution SMART HI-SIDE PWR SWITCH 1-CH
e络盟:
智能电源开关, SIPMOS技术, 高压侧, 1路输出, 2.2A, SOT-223-4
艾睿:
Dealing with high voltages and currents? Protect your circuit with the high side BTS4142NHUMA1 power switch, developed by Infineon Technologies. This charge controller has single output. It features 0.15 Ohm switch on resistance. This charge controller has an input voltage of -10 to 45 V. This device has a maximum power dissipation of 1400 mW. This device has a supply current of 1 mA and a minimum output current of 1.4 A. Its maximum power dissipation is 1400 mW.
安富利:
Power Switch Hi Side 1.4A 4-Pin SOT-223 T/R
Chip1Stop:
Power Switch Hi Side 1.4A Automotive 4-Pin3+Tab SOT-223 T/R
Verical:
Power Switch Hi Side 1.4A Automotive 4-Pin3+Tab SOT-223
Newark:
# INFINEON BTS4142NHUMA1 IC, HIGH SIDE POWER SWITCH, SOT223-4
Win Source:
IC PWR SWTCH N-CHAN 1:1 SOT223-4 / Power Switch/Driver 1:1 N-Channel 1.4A PG-SOT223-4
输出接口数 1
输出电流 1.4 A
供电电流 1 mA
针脚数 4
耗散功率 1.4 W
输出电流Max 1.4 A
输出电流Min 1.4 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1400 mW
电源电压 12V ~ 45V
电源电压Max 45 V
电源电压Min 12 V
输入电压 48 V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Lighting, Decentralized Mirror Module, 照明, Start&Stop transmission, Infotainment System, Truck and Agriculture vehicle solutions 24V, Automotive Lighting, 工业, 车用, Decentralized Light Module, Industrial, Agriculture, Logistics, Seat control, 后勤, Automotive, Bo, 农业, Power train / clutch transmission
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
