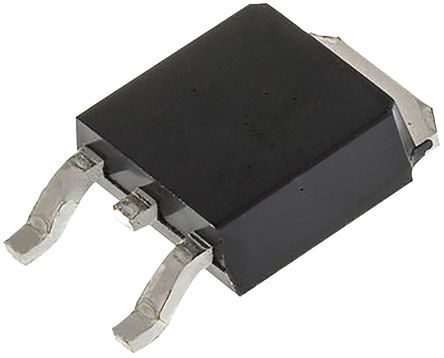

Infineon BTS3046SDRATMA1, 单输出 智能电源开关, 低侧开关, 3.6A, 60V, 3引脚 TO-252封装
HITFET 智能低电压端电源开关,
HITFET 汽车智能低电压端开关系列内置 ESD、过温、短路和过载状况保护。HITFET 系列具有高达 480 毫欧的开关接通电阻,且可标出 RDSon。
诊断或闩锁和重启保护
易于嵌入式更换
得捷:
IC PWR SWITCH N-CHAN 1:1 TO252-3
立创商城:
BTS3046SDRATMA1
欧时:
Infineon BTS3046SDRATMA1, 单输出 智能电源开关, 低侧开关, 3.6A, 60V, 3引脚 TO-252封装
e络盟:
电源负载开关, 低压侧, N功率FET, 1输出, 0.046欧姆导通电阻, 60 V负载, 10 A, TO-252-3
艾睿:
There has never before been an easier time to connect a load to a power supply in your electronic circuit with this low side BTS3046SDRATMA1 power switch by Infineon Technologies. This charge controller has single output. This charge controller has an input voltage of 2 to 10 V. It features 0.095 Ohm switch on resistance. This device has a supply current of 0.01 mA and a minimum output current of 3.6 A. This charge controller has an operating temperature range of -40 °C to 150 °C.
安富利:
Power Switch Lo Side 3.6A 3-Pin2+Tab TO-252 T/R
Verical:
Current Limit SW 2-IN 2-OUT to 4.3A Automotive 3-Pin2+Tab DPAK T/R
DeviceMart:
IC SW SMART LOW SIDE TO252-3
输出接口数 1
输出电流 3.6 A
供电电流 0.01 mA
针脚数 3
输出电流Max 3.6 A
输出电流Min 3.6 A
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 2V ~ 10V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.5 mm
宽度 6.22 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 24V Applications
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
