电源负载开关, AEC-Q100, 高压侧, 1输出, 13.5 V, 50 A/0.012 ohm输出, SOIC-14
By implementing this high side power switch by Technologies into your circuit you are greatly reducing the risk for damaging it. This charge controller has single output. This charge controller has an input voltage of -0.3 to 6 V. This device has a maximum power dissipation of 2000 mW. It features 0.021 Ohm switch on resistance. Its maximum power dissipation is 2000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This charge controller has an operating temperature range of -40 °C to 150 °C.
输出接口数 1
输入电压DC 13.5 V
输出电流 10 A
供电电流 5 mA
针脚数 14
耗散功率 2 W
输出电流Max 10 A
输出电流Min 10 A
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 2000 mW
电源电压Max 28 V
电源电压Min 5 V
输入电压 13.5 V
安装方式 Surface Mount
引脚数 14

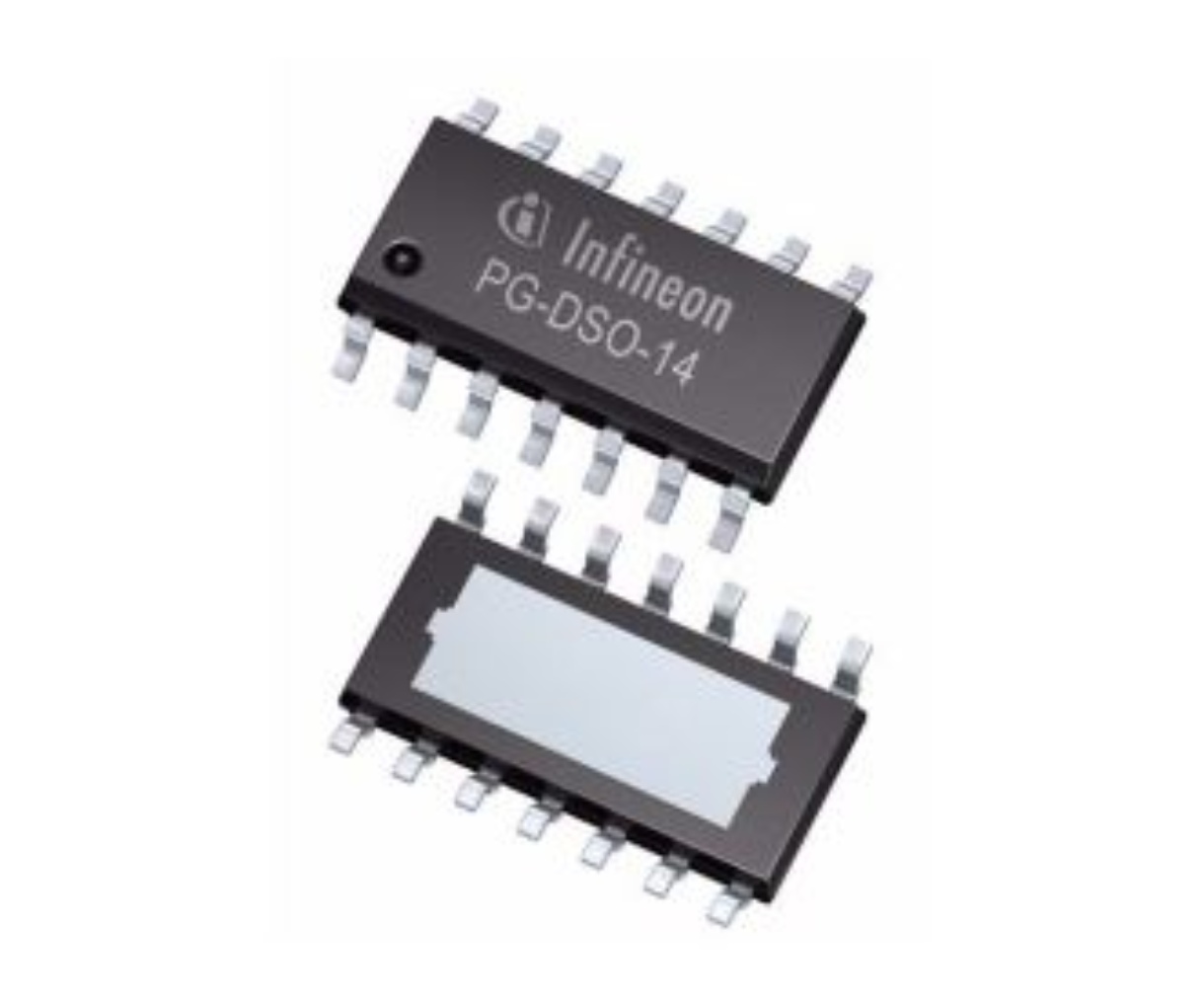

封装 PG-DSO-14-47-EP
封装 PG-DSO-14-47-EP
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
