2,3,4节锂离子或锂聚合物电池保护
锂离子电池保护,Texas Instruments
锂离子电池保护 IC 可检测各种故障条件,如过压、欠压、放电过电流和短路。 需要在没有监控器时提供独立保护或补充安全。
得捷:
IC BATT PROT LI-ION 2-4C 24TSSOP
欧时:
锂离子电池保护,Texas Instruments锂离子电池保护 IC 可检测各种故障条件,如过压、欠压、放电过电流和短路。 需要在没有监控器时提供独立保护或补充安全。### 电池管理,Texas Instruments
贸泽:
Battery Management 2-3-4 Cell Lithium Protection AFE
艾睿:
Protect your batteries from operating outside its safe operating area with this smart battery protection BQ29312APWR charge controller from Texas Instruments. Its output produces a current of 0.2Max mA. With an output that has a voltage of 25Max V, this is power management at its best. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 4.5 V and a maximum of 25 V. This battery gauge has an operating temperature range of -40 °C to 85 °C. This device runs on Li-Ion|Li-Pol.
安富利:
Battery Protection Li-Ion/Li-Pol 0.2mA 25V 24-Pin TSSOP T/R
Chip1Stop:
Lithium Ion Protection Two, Three and Four Cell Lithium or Lithium-Polymer Battery Protection AFE Battery Protection Li-Ion/Li-Pol 0.2mA 25V 24-Pin TSSOP T/R
Verical:
Battery Protection Li-Ion/Li-Pol 0.2mA 25V 24-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS BQ29312APWR BATTERY PROTECTION, LI-ION 4CELL TSSOP24, FULL REEL
力源芯城:
2,3,4节锂离子或锂聚合物电池保护
DeviceMart:
IC LITHIUM BATT PROTECT 24-TSSOP
Win Source:
IC LITHIUM BATT PROTECT 24-TSSOP
输出电压 25 V
输出电流 ≤0.2 mA
耗散功率 874 mW
输出电压Max 25 V
输出电流Min 200 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 874 mW
电源电压 4.5V ~ 25V
电源电压Max 25 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24

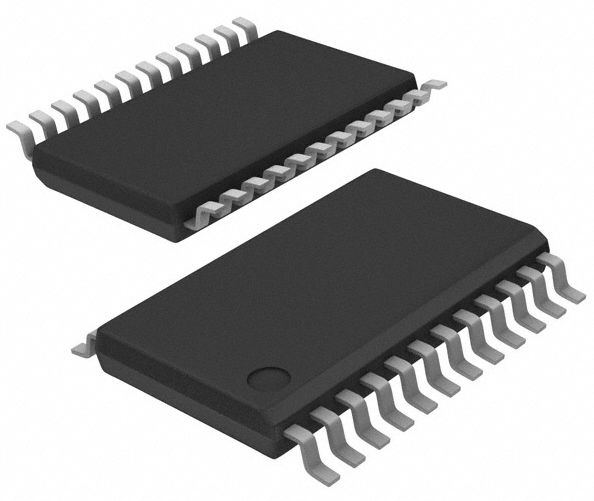

封装 TSSOP-24
长度 7.9 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ29312APWR TI 德州仪器 | 当前型号 | 当前型号 |
BQ29312PWR 德州仪器 | 类似代替 | BQ29312APWR和BQ29312PWR的区别 |
BQ29312APW 德州仪器 | 类似代替 | BQ29312APWR和BQ29312APW的区别 |
BQ29312ARTHR 德州仪器 | 类似代替 | BQ29312APWR和BQ29312ARTHR的区别 |
