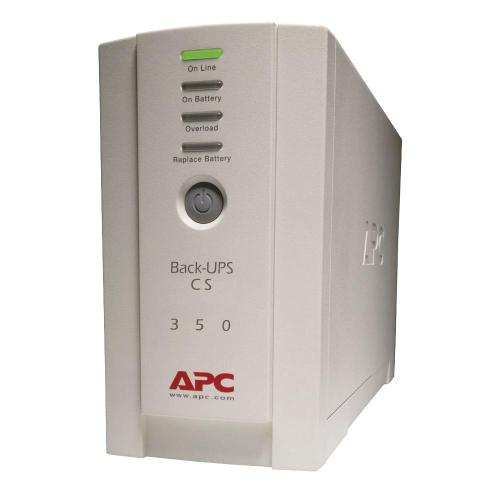

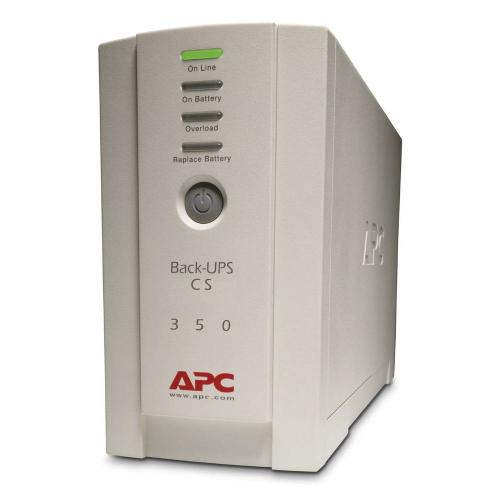

BK350

BK350图片1
BK350图片2
BK350图片3
BK350图片4
BK350图片5
BK350图片6
BK350概述

Uninterruptible Power Supply 350VA 210W 120VAC Input 120VAC Output USB Port Surface Mount

Best Value Battery Backup and Protection for Business Computers.
.
*Features:**

* File-Saving, Auto-Shutdown Software USB

* Power Range from 350-500 VA

* Six Power Outlets Three UPS and Three Surge

* Input/Output Voltage = 120 V

* RJ-11 Modem/Fax/DSL Protection

* LED Indicators Provide Proactive Notification of Changing Power and UPS Conditions

* Up to 55 Minutes of Runtime


艾睿:
Ideal for locations where power outages are common this BK350 uninterruptible power supply from American Power Conversion belongs in your design.


Allied Electronics:
UPS; 350 VA; 120 V Nom.; 120 V Nom.; NEMA 5-15P; For MRO; BK Series


BK350中文资料参数规格
技术参数

额定功率 210 W

输入电压DC 98.0V ~ 140V

输出电压 120 V

输出电流 10 A

输出功率 350 VA

工作温度Max 40 ℃

工作温度Min 0 ℃

电源电压 120 V

输入电压 120 VAC

封装参数

封装 120

外形尺寸

长度 284 mm

宽度 3.6 in

高度 165 mm

封装 120

电源线长度 1.83 m

物理参数

颜色 Beige

重量 5.68 kg

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买BK350
型号: BK350
制造商: American Power Conversion 美国电力转换公司
描述:Uninterruptible Power Supply 350VA 210W 120VAC Input 120VAC Output USB Port Surface Mount
