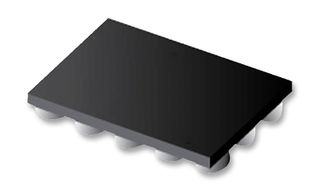

TEXAS INSTRUMENTS BQ27425YZFT-G2B 芯片, 燃料计, LIMN2O4, 4.3-4.35V, 15CSP
With this battery fuel gauge charge controller from Texas Instruments you can monitor the state of your batteries with ease. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a minimum operating supply voltage of 2.45 V and a maximum of 4.5 V. This device runs on Li-Ion. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 2.80V min
输出电压 4.3V ~ 4.35V
针脚数 15
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.8V ~ 4.5V
电源电压Max 4.5 V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 15
封装 DSBGA-15
封装 DSBGA-15
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BQ27425YZFT-G2B TI 德州仪器 | 当前型号 | 当前型号 |
BQ27425YZFT-G2A 德州仪器 | 类似代替 | BQ27425YZFT-G2B和BQ27425YZFT-G2A的区别 |
BQ27425YZFR-G2B 德州仪器 | 功能相似 | BQ27425YZFT-G2B和BQ27425YZFR-G2B的区别 |
