系统端Impedance Track电量计,具有动态电压关系 System-Side Impedance Track Fuel Gauge With Dynamic Voltage Correlation
The is a system-side Fuel Gauge with dynamic voltage correlation. It is a minimally configured microcontroller peripheral that provides system-side fuel gauging for single-cell Li-ion batteries. The device requires very little user configuration and system microcontroller firmware development. The bq27621-G1 uses the dynamic voltage correlation algorithm for fuel gauging. This process eliminates the need for a sense resistor when calculating remaining battery capacity mAh, state-of-charge %, battery voltage mV and temperature °C. Battery fuel gauging with the BQ27621-G1 requires connections only to PACK+ P+ and PACK- P- for a removable battery pack or embedded battery circuit.
电源电压DC 2.45V min
输出电压 0.6 V
输出电流 0.5 mA
针脚数 9
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 4.5 V
电源电压Min 2.45 V
引脚数 9

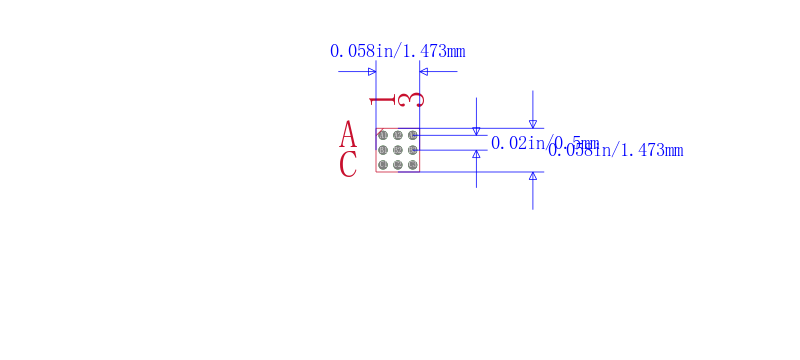

封装 DSBGA-9
封装 DSBGA-9
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 通信与网络, 成像, 视频和目视, 音频, 消费电子产品, 便携式器材, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
