BQ24185YFFT

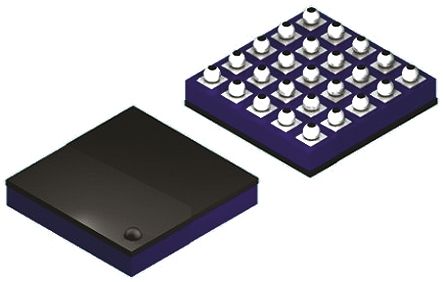

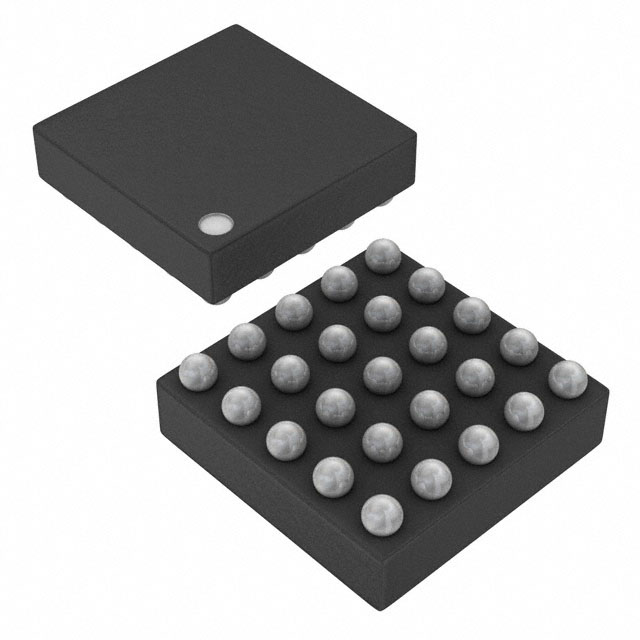

BQ24185YFFT图片1
BQ24185YFFT图片2
BQ24185YFFT图片3
BQ24185YFFT图片4
BQ24185YFFT图片5
BQ24185YFFT图片6
BQ24185YFFT图片7
BQ24185YFFT概述

IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.

### 电池管理,Texas Instruments


得捷:
IC BATT CHG LI-ION 1CELL 25DSBGA


立创商城:
BQ24185YFFT


德州仪器TI:
Fully Integrated Switch-Mode One-Cell Li-Ion Charger with Full USB Compliance


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


贸泽:
电池管理 1.6MHz Sync Sw-Mode LiIon/Poly Bat Chrgr


艾睿:
Switch Mode Charger Li-Ion 1550mA 3.5V to 4.44V 25-Pin DSBGA T/R


Chip1Stop:
Switch Mode Charger Li-Ion 1550mA 3.5V to 4.44V 25-Pin DSBGA T/R


Verical:
Switch Mode Charger Li-Ion 1550mA 3.5V to 4.44V 25-Pin DSBGA T/R


BQ24185YFFT中文资料参数规格
技术参数

输出电压 3.5V ~ 4.44V

输出电流 1.55 A

耗散功率 0.54 W

开关频率 3.00 MHz

输出电压Max 4.44 V

输出电压Min 3.5 V

输出电流Max 2000 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4V ~ 16V

封装参数

安装方式 Surface Mount

引脚数 25

封装 DSBGA-25

外形尺寸

长度 2.4 mm

宽度 2.184 mm

高度 0.325 mm

封装 DSBGA-25

物理参数

工作温度 -30℃ ~ 85℃ TA

其他

产品生命周期 Not Recommended for New Designs

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

BQ24185YFFT引脚图与封装图

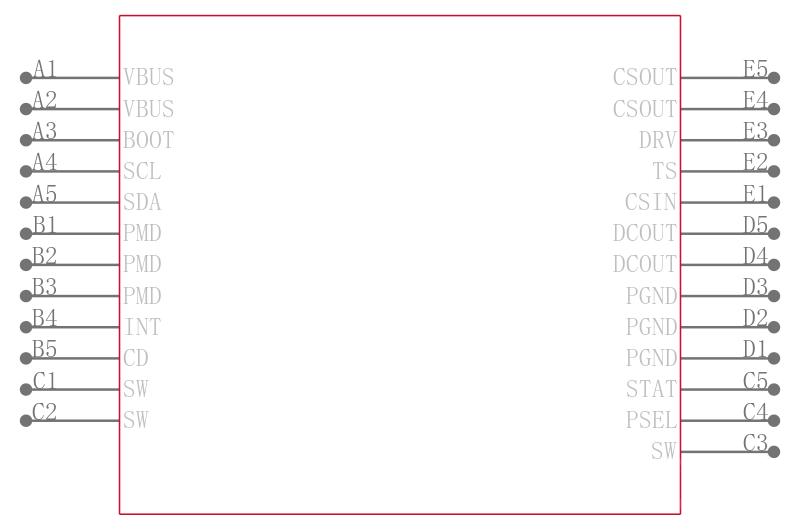

BQ24185YFFT引脚图
BQ24185YFFT封装图
BQ24185YFFT封装焊盘图
在线购买BQ24185YFFT
型号: BQ24185YFFT
制造商: TI 德州仪器
描述:IC,Texas Instruments Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps. ### 电池管理,Texas Instruments
替代型号BQ24185YFFT
型号/品牌 代替类型 替代型号对比

BQ24185YFFT

TI 德州仪器

当前型号

当前型号

BQ24180YFFT

德州仪器

类似代替

BQ24185YFFT和BQ24180YFFT的区别

BQ24185YFFR

德州仪器

类似代替

BQ24185YFFT和BQ24185YFFR的区别

BQ24180YFFR

德州仪器

类似代替

BQ24185YFFT和BQ24180YFFR的区别
