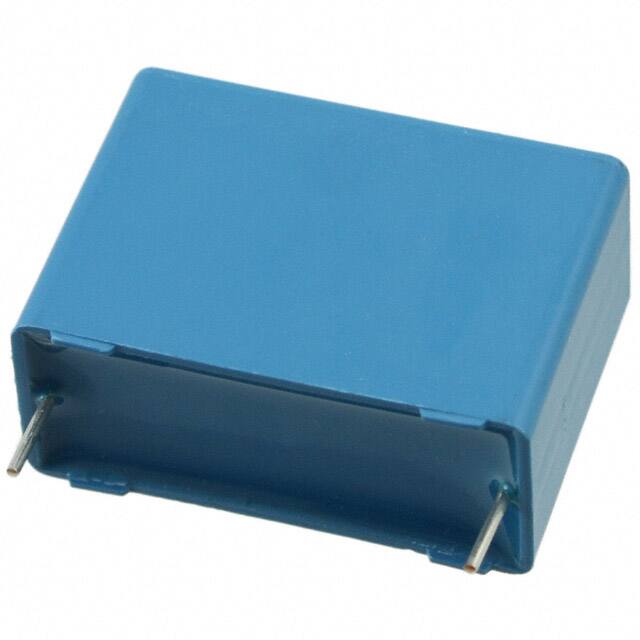

EPCOS B32654A6105J000 膜电容, B32654系列, 1 µF, ± 5%, PP聚丙烯, 630 V, 罐式
The is a metalized polyester Film Capacitor with lead-free tin-plated parallel wire lead terminals. Polypropylene PP dielectric, plastic case UL94V-0 and epoxy resin sealing. Suitable for electronic ballasts and high pulse wound applications.
Do not exceed the upper category temperature UCT. Do not apply any mechanical stress to the capacitor terminals. Avoid any compressive, tensile or flexural stress.
额定电压DC 630 V
额定电压AC 250 V
电容 1 µF
容差 ±5 %
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Through Hole
封装 罐式
引脚间距 27.5 mm
高度 23 mm
封装 罐式
引脚间距 27.5 mm
介质材料 Polypropylene
工作温度 -55℃ ~ 110℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
