单芯片,锂离子充电管理IC为手持式应用( bqTINY⑩ ) SINGLE-CHIP, LI-ION CHARGE MANAGEMENT IC FOR HANDHELD APPLICATIONS bqTINY⑩
DESCRIPON
The bqTINY™ series are highly integrated Li-Ion and Li-Pol linear charge management devices targeted at space limited portable applications. The bqTINY™ series offer integrated powerFET and current sensor, reverse blocking protection, high accuracy current and voltage regulation, charge status, and charge
termination, in a small package.
FEATURES
• Small 3 mm × 3 mm MLP QFN Package
• Ideal for Low-Dropout Designs for Single-Cell Li-Ion or Li-Pol Packs in Space Limited Applications
• Integrated Power FET and Current Sensor for Up to 1-A Charge Applications
• Reverse Leakage Protection Prevents Battery Drainage
• Integrated Current and Voltage Regulation
• ±0.5% Voltage Regulation Accuracy
• Charge Termination by Minimum Current and Time
• Precharge Conditioning With Safety Timer
• Status Outputs for LED or System Interface Indicates Charge and Fault Conditions
• Battery Insertion and Removal Detection
• Works With Regulated and Unregulated Supplies
• Short-Circuit Protection
• Charge Voltage Options: 4.2 V and 4.36 V
APPLICATIONS
• Cellular Phones
• PDAs, MP3 Players
• Digital Cameras
• Internet Appliances
输入电压DC 16.5 V
输出电压 4.36 V
输出电流 1000 mA
供电电流 1.00 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3 V
电源电压Min 3 V
输入电压 16.5 V
安装方式 Surface Mount
引脚数 10

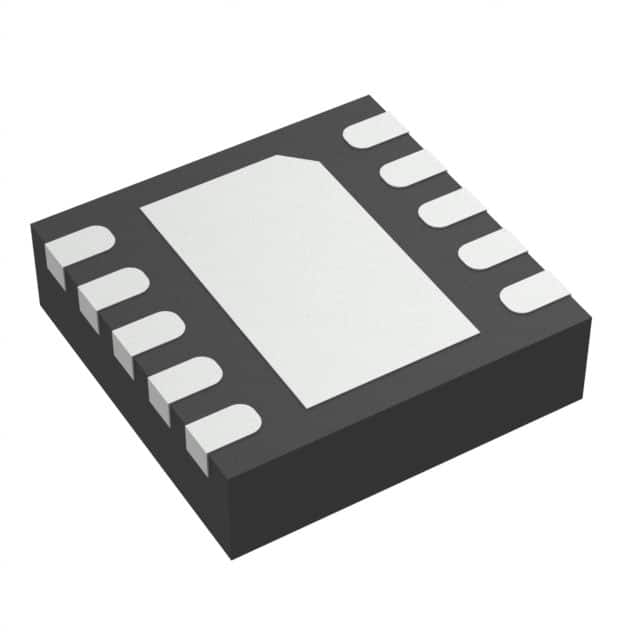

封装 VSON-10
高度 0.95 mm
封装 VSON-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24018DRCT TI 德州仪器 | 当前型号 | 当前型号 |
BQ24018DRCR 德州仪器 | 完全替代 | BQ24018DRCT和BQ24018DRCR的区别 |
BQ24018DRCRG4 德州仪器 | 完全替代 | BQ24018DRCT和BQ24018DRCRG4的区别 |
BQ24018DRCTG4 德州仪器 | 类似代替 | BQ24018DRCT和BQ24018DRCTG4的区别 |
