Texas Instruments
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
### 电池管理,Texas Instruments
得捷:
IC BATT CHG LI-ION 1CELL 20VQFN
立创商城:
BQ24070RHLT
德州仪器TI:
1-cell 2-A Li-ion linear battery charger, Power Path, Output regulated to 4.4V
欧时:
锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
贸泽:
电池管理 Single Input Charger
艾睿:
This smart battery charger BQ24070RHLT charge controller from Texas Instruments operates to optimize your battery&s;s performance. Its output produces a current of 1000 mA. With an output that has a voltage of 4.4 V, this is power management at its best. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device runs on Li-Ion|Li-Pol. This device has a minimum operating supply voltage of 4.35 V and a maximum of 16 V. This battery gauge has an operating temperature range of -40 °C to 125 °C.
安富利:
Battery Charger Li-Ion/Li-Pol 1000mA 4.4V 20-Pin VQFN EP T/R
Chip1Stop:
Battery Charge Management Li-Ion Charger with Dynamic Power-Path Management, Output regulated to 4.4V Battery Charger Li-Ion/Li-Pol 1000mA 4.4V 20-Pin VQFN EP T/R
TME:

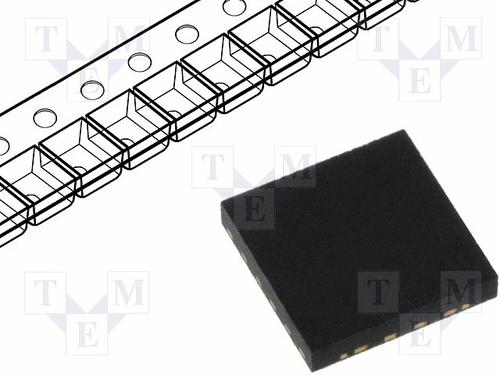

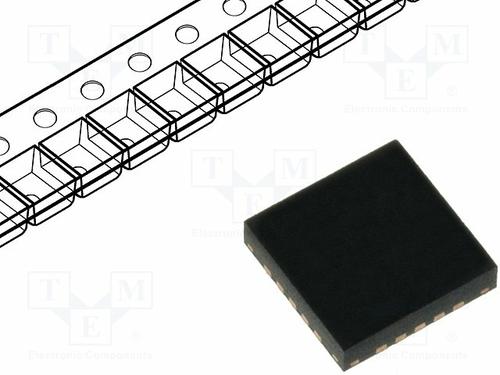

Driver; Li-Ion/Polymer; battery charger controller; 2A; 4.4V
Verical:
Linear Battery Charger Li-Ion/Li-Pol 1500mA 4.2V 20-Pin VQFN EP T/R
Newark:
Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 16V input, 4.2V/1.5 A charge, QFN-20
Win Source:
IC BATT CHARGER LI-ION 20QFN
输入电压DC 16.0 V
输出电压 4.4 V
输出电流 2 A
通道数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.35V ~ 16V
电源电压Max 16 V
输入电压 16 V
安装方式 Surface Mount
引脚数 20

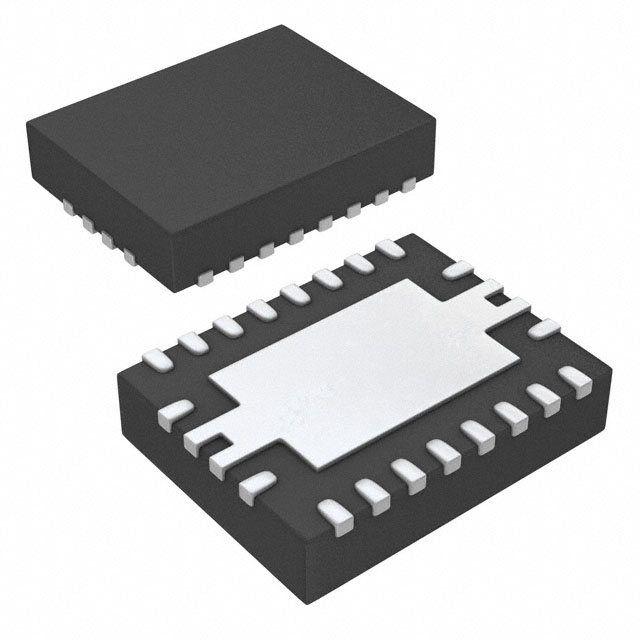

封装 VQFN-20
长度 4.5 mm
宽度 3.5 mm
高度 0.9 mm
封装 VQFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24070RHLT TI 德州仪器 | 当前型号 | 当前型号 |
BQ24070RHLR 德州仪器 | 完全替代 | BQ24070RHLT和BQ24070RHLR的区别 |
BQ24070RHLTG4 德州仪器 | 完全替代 | BQ24070RHLT和BQ24070RHLTG4的区别 |
BQ24070RHLRG4 德州仪器 | 完全替代 | BQ24070RHLT和BQ24070RHLRG4的区别 |
