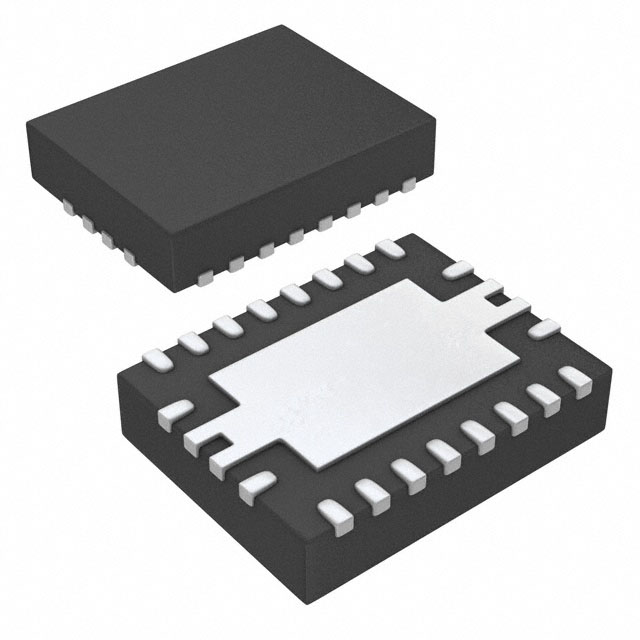

TEXAS INSTRUMENTS BQ51013ARHLR 芯片, 无线电源接收器, 20QFN
DESCRIPON
The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications. The device provides the AC/DC power conversion while integrating the digital control required to comply with the Qi v1.0 communication protocol. Together with the bq500210 transmitter controller, the bq5101x enables a complete contact-less power transfer system for a wireless power supply solution.
电源电压DC 4.00V min
输入电压DC 4.00V ~ 10.0V
输出电压 5 V
供电电流 1.5 A
针脚数 20
输入电压Max 10 V
输入电压Min 4 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压 4V ~ 10V
电源电压Max 10 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 20

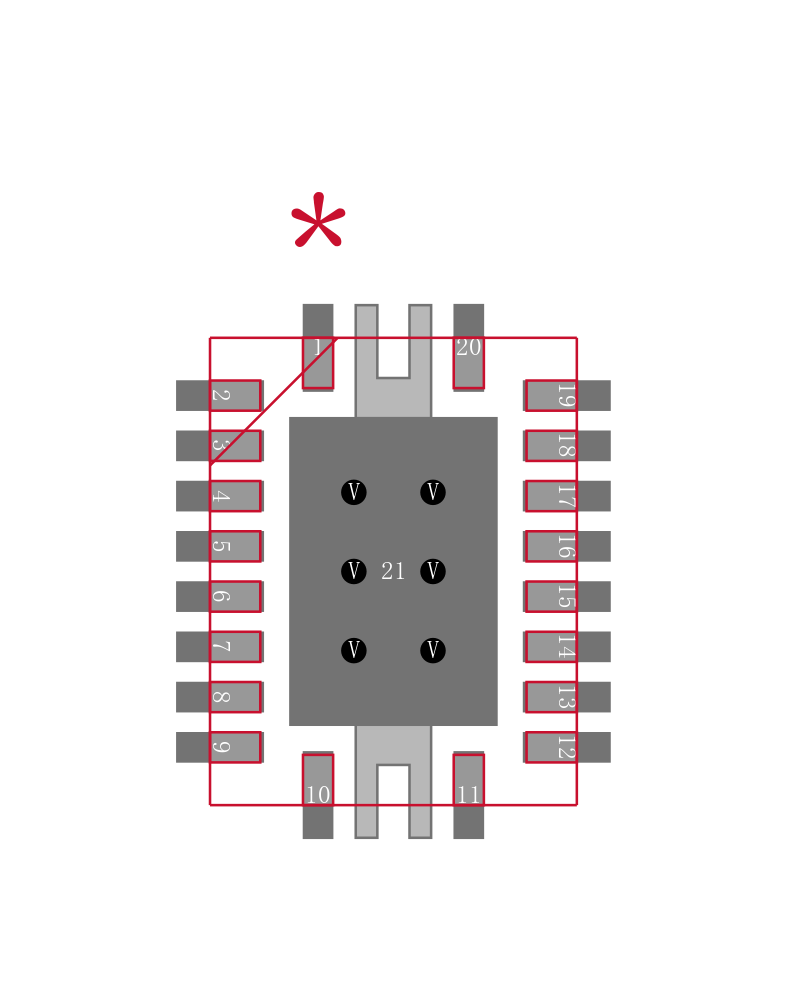

封装 VQFN-20
封装 VQFN-20
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ51013ARHLR TI 德州仪器 | 当前型号 | 当前型号 |
BQ51013BRHLT 德州仪器 | 完全替代 | BQ51013ARHLR和BQ51013BRHLT的区别 |
BQ51013BRHLR 德州仪器 | 完全替代 | BQ51013ARHLR和BQ51013BRHLR的区别 |
BQ51013AYFPT 德州仪器 | 完全替代 | BQ51013ARHLR和BQ51013AYFPT的区别 |
