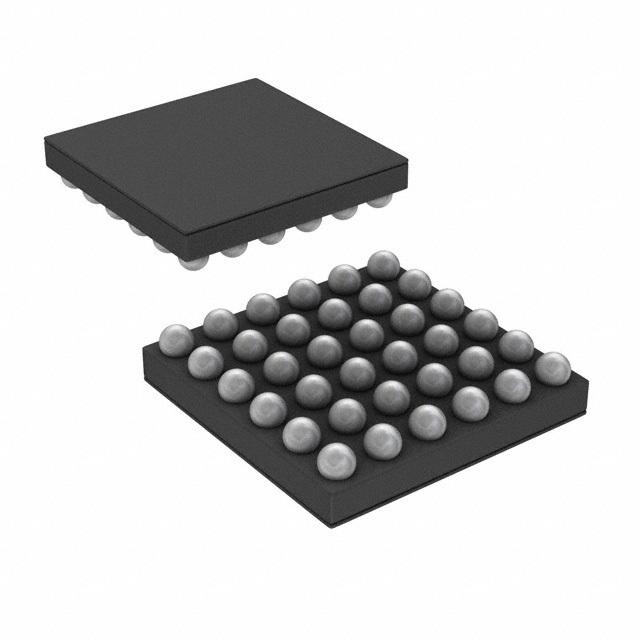

TEXAS INSTRUMENTS BQ24187YFFT 芯片, 锂电池充电管理器, 2A, DSBGA36
Control the environment of your batteries with this battery charger charge controller from Texas Instruments. Its output produces a current of 2000Max mA. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device runs on Li-Ion. This device has a minimum operating supply voltage of 4.2 V and a maximum of 28 V. This battery gauge has an operating temperature range of -40 °C to 85 °C.
输入电压DC 6.00 V
输出电流 2 A
针脚数 36
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 6 V
安装方式 Surface Mount
引脚数 36

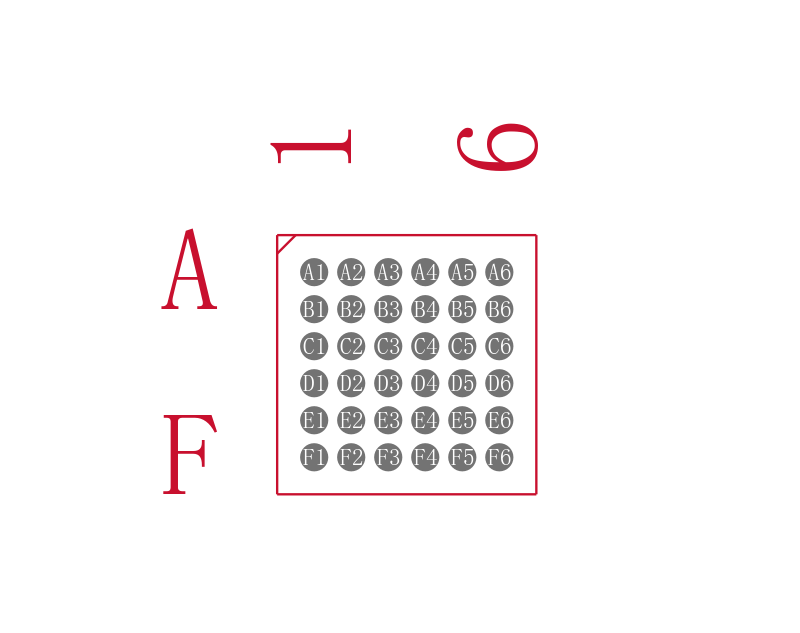

封装 UFBGA-36
封装 UFBGA-36
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BQ24187YFFT TI 德州仪器 | 当前型号 | 当前型号 |
BQ24187YFFR 德州仪器 | 功能相似 | BQ24187YFFT和BQ24187YFFR的区别 |
