BQ24133RGYT

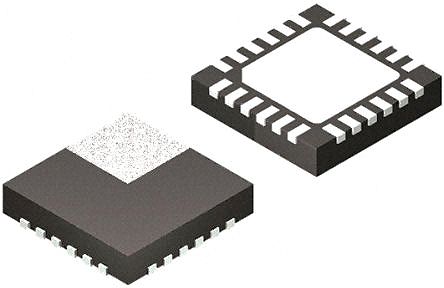

BQ24133RGYT图片1

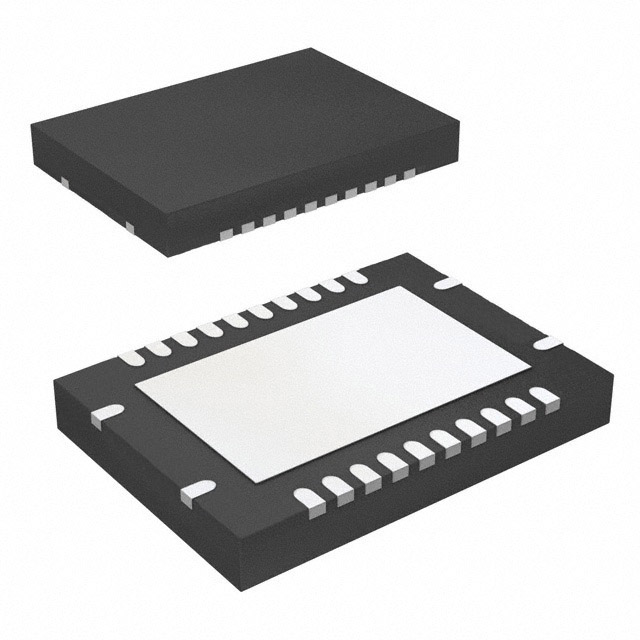

BQ24133RGYT图片2
BQ24133RGYT图片3
BQ24133RGYT图片4
BQ24133RGYT图片5
BQ24133RGYT图片6
BQ24133RGYT图片7
BQ24133RGYT图片8
BQ24133RGYT图片9
BQ24133RGYT图片10
BQ24133RGYT图片11
BQ24133RGYT概述

IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.


得捷:
IC BATT CHG LI-ION 1-3CEL 24VQFN


立创商城:
BQ24133RGYT


德州仪器TI:
Standalone 1-3 cell 2.5A synchronous Buck battery charger with external Power Path


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


e络盟:
电池充电器, 用于3节锂离子, 锂聚合物电池, 17V输入, 4.2V / 2.5A充电, VQFN-24


艾睿:
Switching Battery Charger Li-Ion/Li-Pol 2500mA 13.5V 24-Pin VQFN EP T/R


安富利:
Battery Charger Li-Ion/Li-Pol 2500mA 13.5V 24-Pin VQFN EP T/R


Chip1Stop:
Battery Charger Li-Ion/Li-Pol 2500mA 13.5V 24-Pin VQFN EP T/R


Verical:
Switching Battery Charger Li-Ion/Li-Pol 2500mA 4.2V 24-Pin VQFN EP T/R


Newark:
# TEXAS INSTRUMENTS  BQ24133RGYT  BATT CHARGER, LI-ION/POL, 2.5A, VQFN-24


DeviceMart:
IC BATT CHARGE LI-ION/POL 24VQFN


Win Source:
IC BATT CHARGE LI-ION/POL 24VQFN


BQ24133RGYT中文资料参数规格
技术参数

输入电压DC 17.0 V

输出电压 13.5 V

输出电流 2500 mA

针脚数 24

开关频率 1.60 MHz

输出电压Max 13.5 V

输出电流Max 2.5 A

输出电流Min 600 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 17V

电源电压Max 17 V

输入电压 17 V

封装参数

安装方式 Surface Mount

引脚数 24

封装 VQFN-24

外形尺寸

长度 5.65 mm

宽度 3.65 mm

高度 0.95 mm

封装 VQFN-24

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 工业, 便携式器材, 医用, 消费电子产品, 计算机和计算机周边, 电源管理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

BQ24133RGYT引脚图与封装图
BQ24133RGYT引脚图
BQ24133RGYT封装图
BQ24133RGYT封装焊盘图
在线购买BQ24133RGYT
型号: BQ24133RGYT
制造商: TI 德州仪器
描述:IC,Texas Instruments Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps. ### 电池管理,Texas Instruments
替代型号BQ24133RGYT
型号/品牌 代替类型 替代型号对比

BQ24133RGYT

TI 德州仪器

当前型号

当前型号

BQ24133RGYR

德州仪器

类似代替

BQ24133RGYT和BQ24133RGYR的区别
