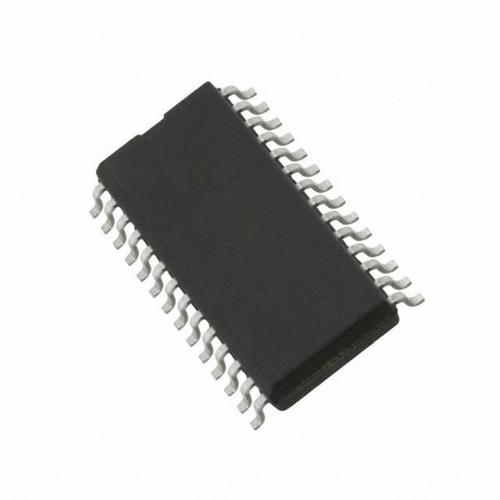

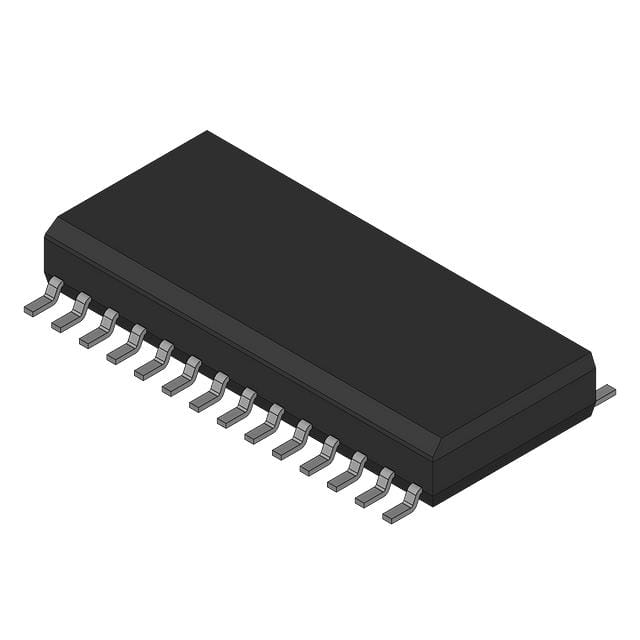

BTM7741GXUMA1

电源配电开关, 高压侧, 低压侧, 4输出, 42V, 10A, 0.27ohm, SOIC-28

Description:

The BTM7741G is part of the Trilith IC family containing three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated lead frames. The sources are connected to individual pins, so the BTM7741G can be used in H-bridge- as well as in any other configuration. Both the double high-side and the two low-side switches of the BTM7741G are manufactured in SMART SIPMOS ® technology which combines low R DS ON vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis.

Summary of Features:

.

Quad D-MOS switch driver

.

Free configurable as bridge or quad-switch

.

Optimized for DC motor management applications

.

Low R DS ON High side: 110 mΩ typ. @ 25°C, 270 mΩ max. @ 150°C Low side: 100 mΩ typ. @ 25°C, 230 mΩ max. @ 150°C

.

Maximum peak current: typ. 10 A @ 25 °C

.

Very low quiescent current: typ. 5 µA @ 25 °C

.

Small outline, enhanced power PG-DSO-package

.

Operates up to 40 V

.

PWM frequencies up to 1 kHz

.

Status flag diagnosis

.

Short-circuit-protection

.

Overtemperature shut down with hysteresis

.

Internal clamp diodes

.

Open load detection in Off-mode

.

Under-voltage detection with hysteresis

.

Green Product RoHS compliant

.

AEC Qualified
