BFC233820474

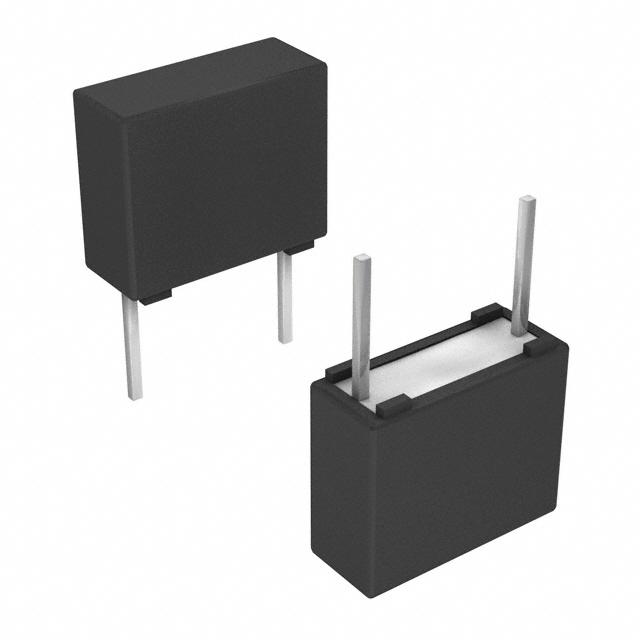

VISHAY  BFC233820474  膜电容, MKP3382 X2系列, 0.47 µF, ± 20%, X2, 径向引线, 105 °C

The Vishay MKP3382 X2 series are radial leaded, interference suppression film capacitors. The capacitance range includes E12 decade values from 0.001µF to 3.3µF. These film capacitors are non polarized electrical capacitors with an insulated Polypropylene film as dielectric.

.

7.5mm to 27.5mm lead pitch

.

±20%, ±10% and ±5% tolerance

.

Rated AC voltage of 310V

.

Rated DC voltage of 800V at 85°C and 630V at 110°C

.

Meets IEC 60384-14-3, EN60384-14, IEC 60065, UL 60384-14, CSA-E384-14, CQC standards

.

Flame retardant plastic case and epoxy resin coated with tinned wire
