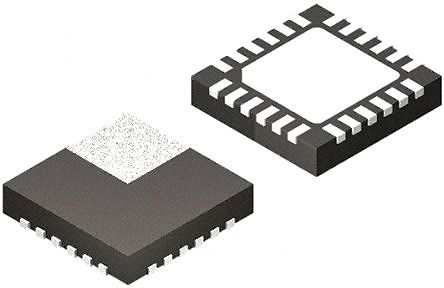

TEXAS INSTRUMENTS BQ24167RGET 芯片, 充电器, 双路输入, 锂离子, 2.5A, 24VQFN
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
得捷:
IC BATT CHG LI-ION 1CELL 24VQFN
立创商城:
BQ24167RGET
德州仪器TI:
I2C 1cell 2.5A Buck battery charger with dual-input, Power Path and JEITA
欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
贸泽:
Battery Management Sgl Cell Switchmode Li-Ion Batt Charger
e络盟:
电池充电器, 用于1节锂离子电池, 10V输入, 4.2V / 2.5A充电, VQFN-24
艾睿:
Protect your batteries from operating outside its safe operating area with this smart battery charger BQ24167RGET charge controller from Texas Instruments. With an output that has a voltage of 4.2 V, this is power management at its best. Its output produces a current of 2500 mA. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a minimum operating supply voltage of 4.2 V and a maximum of 10 V. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device runs on Li-Ion.
安富利:
Battery Charger Li-Ion 2500mA 4.2V 24-Pin VQFN EP T/R
Chip1Stop:
Battery Charger Li-Ion 2500mA 4.2V 24-Pin VQFN EP T/R
Verical:
Switching Battery Charger Li-Ion/Li-Pol 2500mA 4.2V 24-Pin VQFN EP T/R
Newark:
# TEXAS INSTRUMENTS BQ24167RGET CHARGER, DUAL I/P, LI-ION, 2.5A, 24VQFN
DeviceMart:
IC BATT CHRG MGMT LI-ION 24VQFN
输入电压DC 10.0 V
输出电压 4.2 V
输出电流 2.5 A
针脚数 24
开关频率 1.50 MHz
输出电压Max 4.24 V
输出电压Min 4.02 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.2V ~ 18V
输入电压 10 V
安装方式 Surface Mount
引脚数 24
封装 VQFN-24
长度 4.15 mm
宽度 4.15 mm
高度 0.92 mm
封装 VQFN-24
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 成像, 视频和目视, 消费电子产品, 便携式器材, 音频, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24167RGET TI 德州仪器 | 当前型号 | 当前型号 |
BQ24166RGET 德州仪器 | 完全替代 | BQ24167RGET和BQ24166RGET的区别 |
BQ24167RGER 德州仪器 | 类似代替 | BQ24167RGET和BQ24167RGER的区别 |
