高效率琦V1.1兼容无线电源接收器和电池充电器 High-Efficiency Qi v1.1-Compliant Wireless Power Receiver and Battery Charger
The bq5105x device is a high-efficiency, Qi-compliant wireless power receiver with an integrated Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105xB devices provide efficient AC-DC power conversion, integrates the digital controller required to comply with Qi v1.2 communication protocol, and provides all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charging. Together with the bq500212A transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solutions. By using near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter to stabilize the power transfer process. This feedback is established by using the Qi v1.2 communication protocol.
The bq5105xB devices integrate a low-impedance synchronous rectifier, low-dropout regulator LDO, digital control, charger controller, and accurate voltage and current loops in a single package. The entire power stage rectifier and LDO use low-resistance N-MOSFETs 100-mΩ typical Rdson to ensure high efficiency and low power dissipation.
输入电压DC 4.00V ~ 10.0V
输出电压 4.3V ~ 4.37V
输出电流 1500 mA
供电电流 8 mA
输入电压Max 10 V
输入电压Min 4 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压 4V ~ 10V
安装方式 Surface Mount
引脚数 20

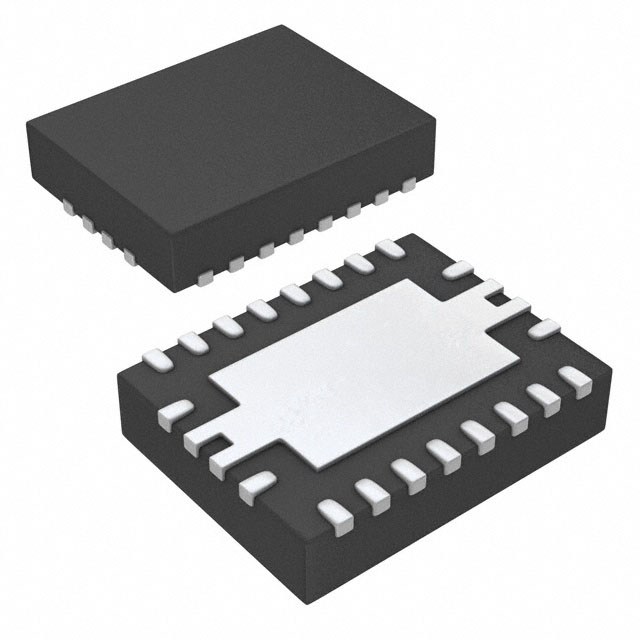

封装 VQFN-20
高度 0.95 mm
封装 VQFN-20
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ51051BRHLR TI 德州仪器 | 当前型号 | 当前型号 |
BQ51051BRHLT 德州仪器 | 完全替代 | BQ51051BRHLR和BQ51051BRHLT的区别 |
