BQ51020YFPR

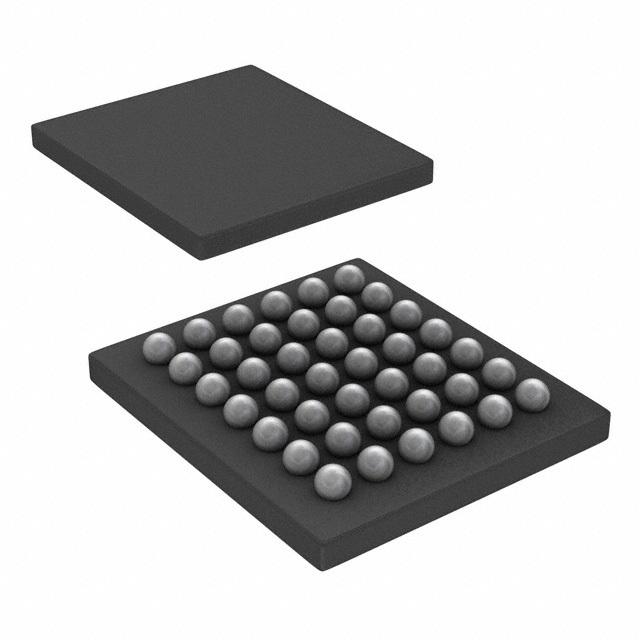

BQ51020YFPR图片1
BQ51020YFPR图片2
BQ51020YFPR图片3
BQ51020YFPR图片4
BQ51020YFPR概述

5W WPC 单芯片无线电源接收器 42-DSBGA -40 to 125

The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion rectification and regulation as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.

BQ51020YFPR中文资料参数规格
技术参数

输入电压DC 4.00V ~ 10.0V

输出电压 4.5V ~ 8V

供电电流 2.5 A

输入电压Max 20 V

输出电流Max 1.5 A

输出功率Max 5 W

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 4V ~ 10V

封装参数

安装方式 Surface Mount

引脚数 42

封装 XFBGA-42

外形尺寸

封装 XFBGA-42

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

BQ51020YFPR引脚图与封装图

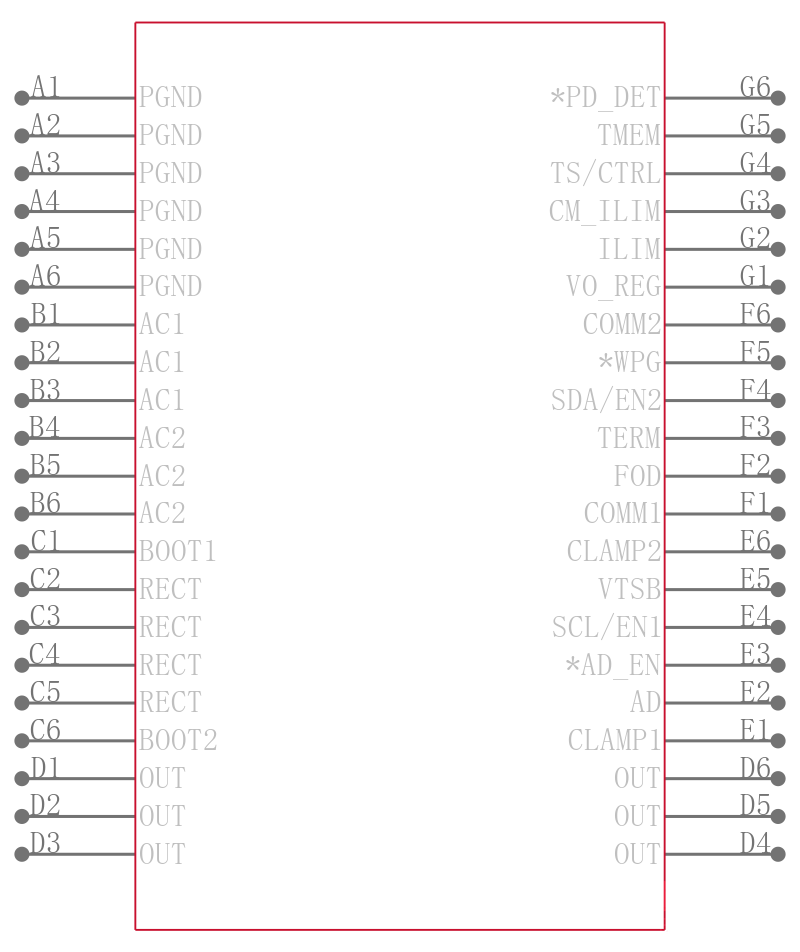

BQ51020YFPR引脚图

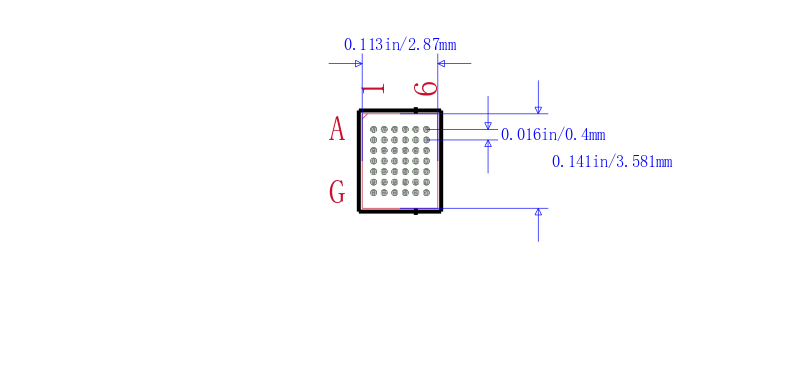

BQ51020YFPR封装图

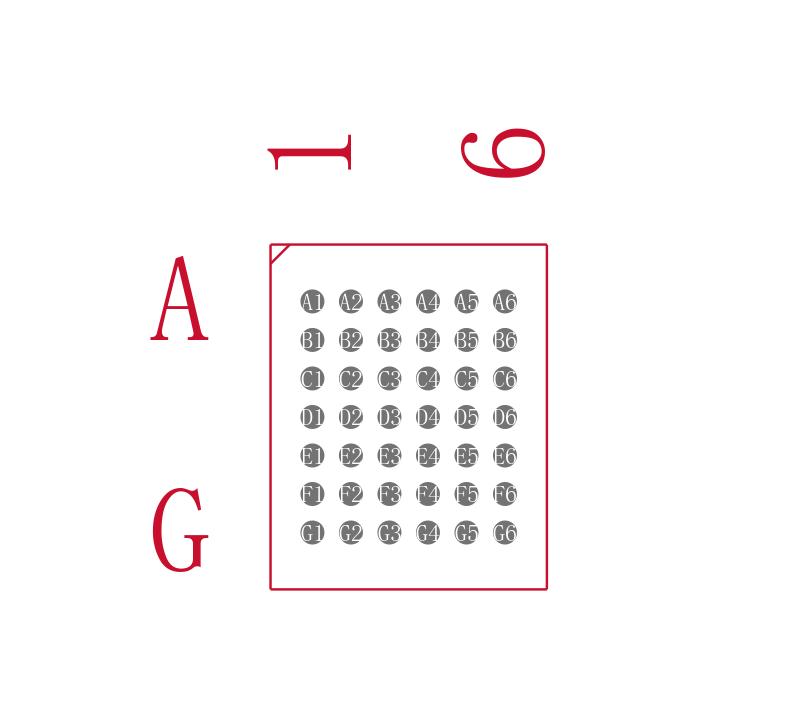

BQ51020YFPR封装焊盘图
在线购买BQ51020YFPR
型号: BQ51020YFPR
制造商: TI 德州仪器
描述:5W WPC 单芯片无线电源接收器 42-DSBGA -40 to 125
替代型号BQ51020YFPR
型号/品牌 代替类型 替代型号对比

BQ51020YFPR

TI 德州仪器

当前型号

当前型号

BQ51020YFPT

德州仪器

完全替代

BQ51020YFPR和BQ51020YFPT的区别
