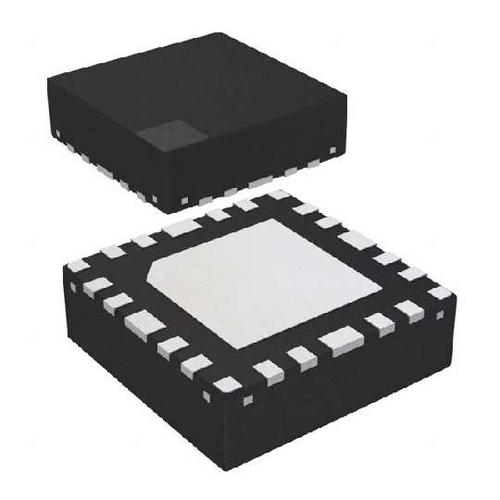

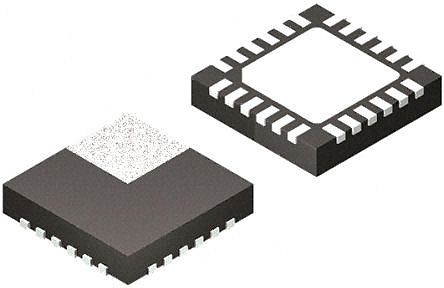

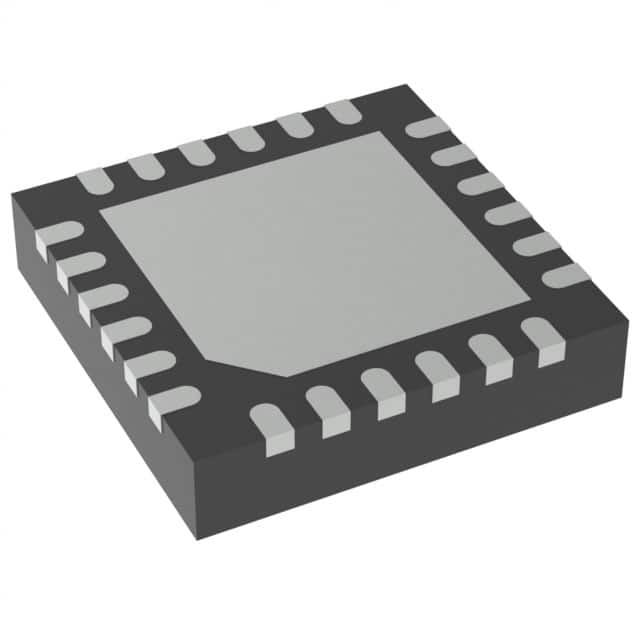

TEXAS INSTRUMENTS BQ24261RGET 芯片, 电池充电器, 锂离子, 3A, VQFN-24
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
得捷:
IC BATT CHG LI-ION 1CELL 24VQFN
欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
贸泽:
Battery Management 3A Host-Cntrld SGL Inpt-Cell Switchmode
e络盟:
TEXAS INSTRUMENTS BQ24261RGET BATTERY CHARGER, LI-ION, 3A, VQFN-24
艾睿:
Battery Charger Li-Ion/Li-Pol 3000mA 3.5V to 4.44V 24-Pin VQFN EP T/R
安富利:
Battery Charger Li-Ion 3000mA 3.5 to 4.44V 24-Pin VQFN T/R
Verical:
Switching Battery Charger Li-Ion 3000mA 3.5V to 4.44V 24-Pin VQFN EP T/R
Newark:
# TEXAS INSTRUMENTS BQ24261RGET Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 13.2V input, 3 A charge, VQFN-24
输入电压DC 13.2 V
输出电压 3.5V ~ 4.44V
输出电流 3 A
针脚数 24
输出电压Max 5.2 V
输出电压Min 4.95 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 13.2 V
安装方式 Surface Mount
引脚数 24
封装 VQFN-24
长度 4.15 mm
宽度 4.15 mm
高度 0.95 mm
封装 VQFN-24
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24261RGET TI 德州仪器 | 当前型号 | 当前型号 |
BQ24261MRGET 德州仪器 | 完全替代 | BQ24261RGET和BQ24261MRGET的区别 |
BQ24261RGER 德州仪器 | 完全替代 | BQ24261RGET和BQ24261RGER的区别 |
