BQ24002PWP概述

IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.


得捷:
IC BATT CHG LI-ION 1CEL 20HTSSOP


立创商城:
BQ24002PWP


德州仪器TI:
1-cell, 1.2-A, linear Li-ion battery charger with integrated FET, two LED


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


e络盟:
电池充电器, 用于1节锂离子电池, 10V输入, 4.2V / 1.2A充电, HTSSOP-20


艾睿:
Easily reduce the complexity and component count of your battery powered system with this linear charge management BQ24002PWP charge controller from Texas Instruments. With an output that has a voltage of 4.1|4.2 V, this is power management at its best. Its output produces a current of 1200Max mA. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 70 °C. This device runs on Li-Ion. This device has a minimum operating supply voltage of 4.5 V and a maximum of 10 V.


安富利:
Linear Charge Management Li-Ion 1200mA 4.1V/4.2V 20-Pin HTSSOP EP Tube


Chip1Stop:
Battery Charge Management Linear 1-cell Li-Ion Battery Charger w/Integrated FET, Two LED Linear Charge Management Li-Ion 1200mA 4.1V/4.2V 20-Pin HTSSOP EP Tube


Verical:
Linear Battery Charger Li-Ion/Li-Pol 1200mA 4.1V/4.2V 20-Pin HTSSOP EP Tube


DeviceMart:
IC LI-ION CHARGE MGMT 20HTSSOP


Win Source:
IC LI-ION CHARGE MGMT 20HTSSOP


BQ24002PWP中文资料参数规格
技术参数

电源电压DC 10.0V max

输入电压DC 10.0 V

输出电流 1.2 A

针脚数 20

工作温度Max 70 ℃

工作温度Min -20 ℃

电源电压 4.5 V

电源电压Max 10 V

输入电压 10 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 HTSSOP-20

外形尺寸

长度 6.5 mm

宽度 4.4 mm

高度 1.15 mm

封装 HTSSOP-20

物理参数

工作温度 -40℃ ~ 70℃ TA

其他

产品生命周期 Active

包装方式 Tube

制造应用 消费电子产品, 音频, 便携式器材

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

BQ24002PWP引脚图与封装图
BQ24002PWP引脚图
BQ24002PWP封装图

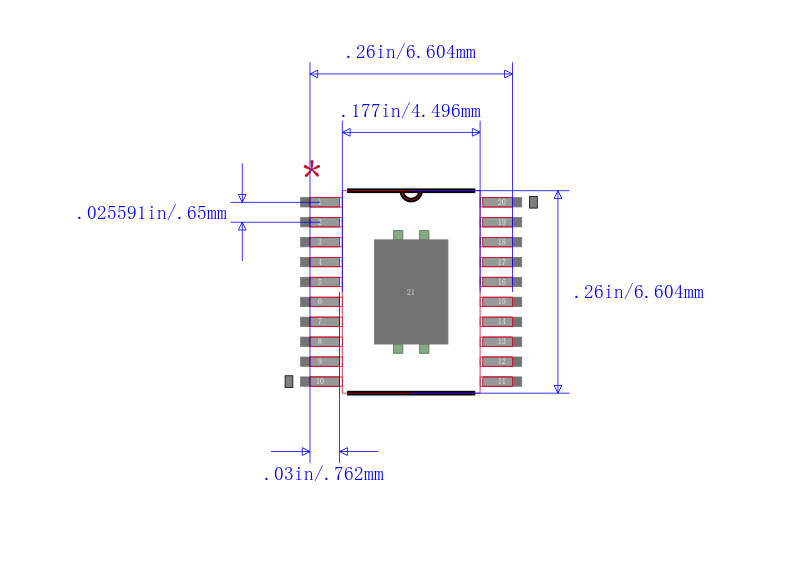

BQ24002PWP封装焊盘图
