BQ24104RHLT

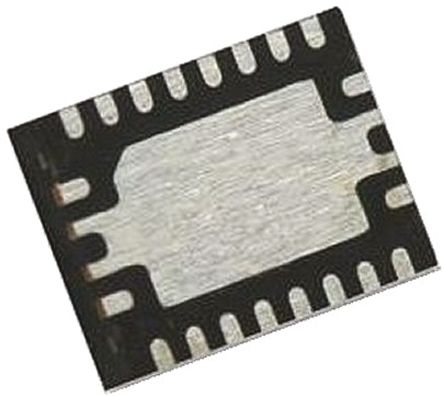

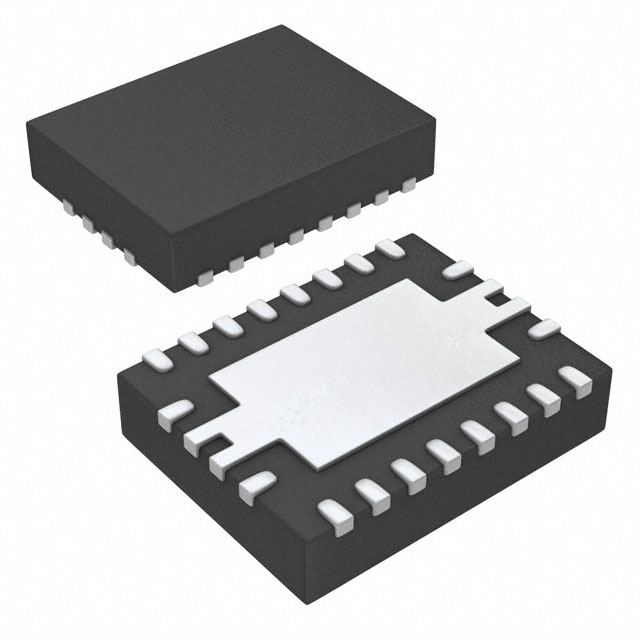

BQ24104RHLT图片1
BQ24104RHLT图片2
BQ24104RHLT图片3
BQ24104RHLT图片4
BQ24104RHLT图片5
BQ24104RHLT图片6
BQ24104RHLT图片7
BQ24104RHLT图片8
BQ24104RHLT概述

IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.

### 电池管理,Texas Instruments


立创商城:
BQ24104RHLT


德州仪器TI:
Standalone 1-2 cell 2A synchronous Buck battery charger


得捷:
IC BATT CHG LI-ION 1-2CEL 20VQFN


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


贸泽:
Battery Management Synch Swmode,Li-Ion LiPol Charge Mgmt IC


艾睿:
Switch Mode Charger Li-Ion/Li-Pol Packs 150mA to 2000mA 4.2V/8.4V 20-Pin VQFN EP T/R


安富利:
Switch Mode Charger Li-Ion/Li-Pol Packs 150mA to 2000mA 4.2V/8.4V 20-Pin VQFN EP T/R


Chip1Stop:
Battery Charge Management Synchronous Switchmode, Li-Ion & Li-Pol Charge Mngmt IC bqSwitcher Switch Mode Charger Li-Ion/Li-Pol Packs 150mA to 2000mA 4.2V/8.4V 20-Pin VQFN EP T/R


Verical:
Switching Battery Charger Li-Ion/Li-Pol/NiCd/NiMH 2000mA 4.2V/8.4V 20-Pin VQFN EP T/R


BQ24104RHLT中文资料参数规格
技术参数

输出电压 4.2 V

输出电流 2 A

耗散功率 1810 mW

开关频率 1.10 MHz

输出电压Max 8.4 V

输出电压Min 4.2 V

输出电流Max 2.2 A

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1810 mW

电源电压 4.3 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 VQFN-20

外形尺寸

长度 4.65 mm

宽度 3.65 mm

高度 0.95 mm

封装 VQFN-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

BQ24104RHLT引脚图与封装图
BQ24104RHLT引脚图
BQ24104RHLT封装图

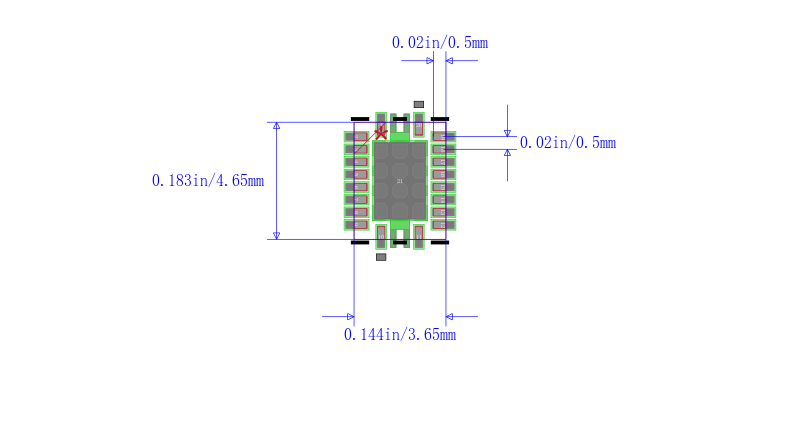

BQ24104RHLT封装焊盘图
在线购买BQ24104RHLT
型号: BQ24104RHLT
制造商: TI 德州仪器
描述:IC,Texas Instruments Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps. ### 电池管理,Texas Instruments
替代型号BQ24104RHLT
型号/品牌 代替类型 替代型号对比

BQ24104RHLT

TI 德州仪器

当前型号

当前型号

BQ24104RHLR

德州仪器

类似代替

BQ24104RHLT和BQ24104RHLR的区别
