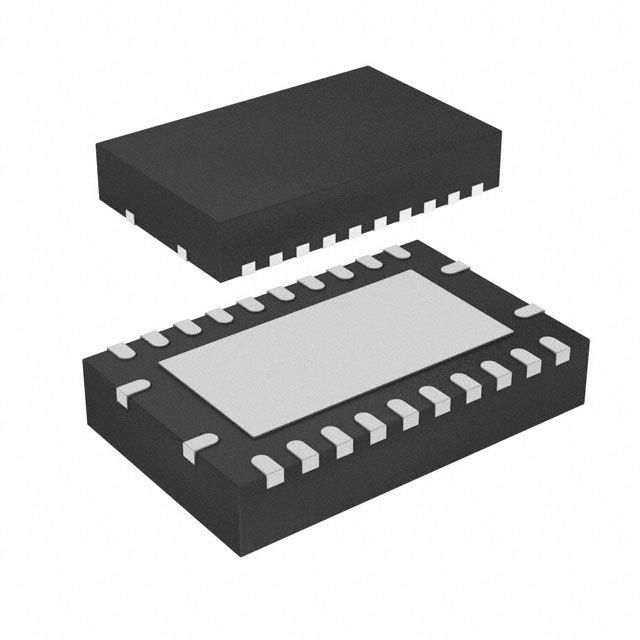

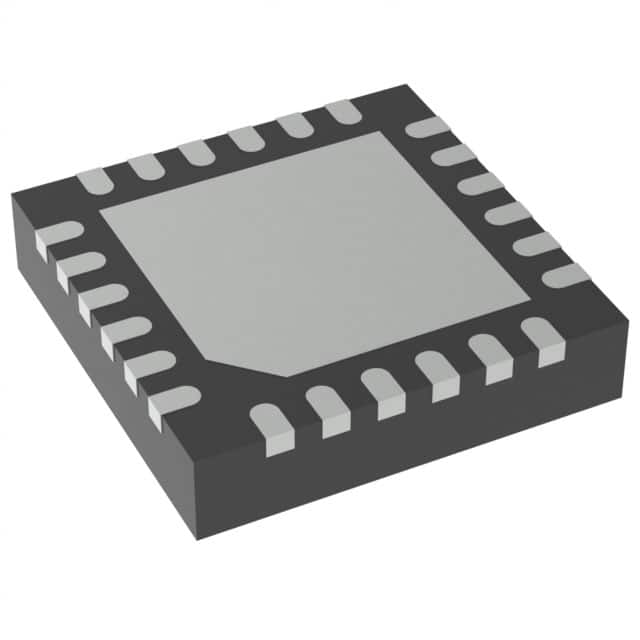

TEXAS INSTRUMENTS BQ24160RGET 芯片, 电池充电器, 2.5A, 锂离子, I2C, 24QFN
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
### 电池管理,Texas Instruments
得捷:
IC BATT CHG LI-ION 1CELL 24VQFN
立创商城:
BQ24160RGET
德州仪器TI:
I2C 1cell 2.5A Buck battery charger with dual-input, Power Path and USB detection
欧时:
Texas Instruments BQ24160RGET 锂离子 锂离子充电器 IC, 2.5A最大输出, 4.2 → 10 V电源
e络盟:
电池充电器, 用于1节锂离子电池, 18V输入, 4.44V / 2.5A充电, VQFN-24
艾睿:
This smart battery charger BQ24160RGET charge controller from Texas Instruments operates to optimize your battery&s;s performance. Its output produces a current of 2500 mA. With an output that has a voltage of 3.5 to 4.44 V, this is power management at its best. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device runs on Li-Ion. This battery gauge has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 4.2 V and a maximum of 10 V.
安富利:
Battery Charger Li-Ion 2500mA 3.5V to 4.44V 24-Pin VQFN EP T/R
Chip1Stop:
Battery Charger Li-Ion 2500mA 3.5V to 4.44V 24-Pin VQFN EP T/R
Verical:
Switching Battery Charger Li-Ion/Li-Pol 2500mA 3.5V to 4.44V 24-Pin VQFN EP T/R
Newark:
BATT CHRGR, 2.5A, LI-ION, I2C, 24QFN
DeviceMart:
IC BATT CHRG MGMT LI-ION 24VQFN
输入电压DC 18.0 V
输出电压 3.5V ~ 4.44V
输出电流 2.5 A
针脚数 24
开关频率 1.50 MHz
输出电压Max 4.44 V
输出电压Min 3.5 V
输出电流Max 2.5 A
输出电流Min 550 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 18 V
安装方式 Surface Mount
引脚数 24
封装 VQFN-24
长度 4.15 mm
宽度 4.15 mm
高度 0.95 mm
封装 VQFN-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 计算机和计算机周边, 消费电子产品, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24160RGET TI 德州仪器 | 当前型号 | 当前型号 |
BQ24160RGER 德州仪器 | 完全替代 | BQ24160RGET和BQ24160RGER的区别 |
