TEXAS INSTRUMENTS BQ51020YFPT 芯片, 无线电源接收器, 20V, DSBGA-42
Transfer energy from this wireless charging device from Texas Instruments to your electronic device wirelessly! With an output that has a voltage of 4.5 to 8 V and maximum output power of 5 W, this is power management at its best. It only needs a voltage that does not exceed 20 V to effectively power your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This item should be stored between -65 °C and 150 °C. This wireless charger has an operating temperature range of -40 °C to 125 °C.
电源电压DC 20.0V max
输入电压DC 4.00V ~ 10.0V
输出电压 4.5V ~ 8V
供电电流 2.5 A
针脚数 42
输入电压Max 20 V
输出电流Max 1.5 A
输出功率Max 5 W
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 10V
电源电压Max 20 V
安装方式 Surface Mount
引脚数 42

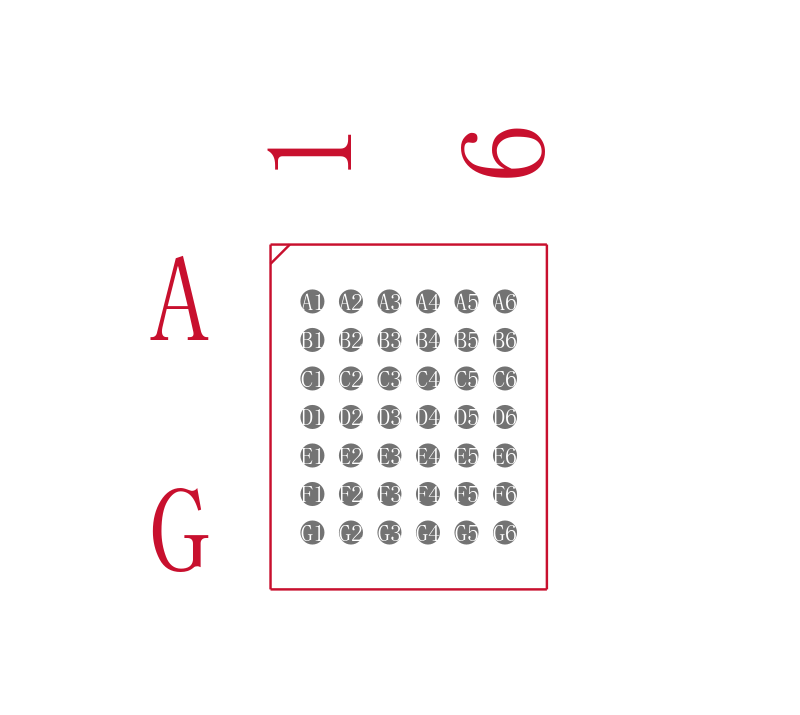

封装 DSBGA-42
封装 DSBGA-42
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 无线充电
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ51020YFPT TI 德州仪器 | 当前型号 | 当前型号 |
BQ51020YFPR 德州仪器 | 完全替代 | BQ51020YFPT和BQ51020YFPR的区别 |
