无线充电IC Wireless Charger
The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion rectification and regulation as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.
输入电压DC 4.00V ~ 10.0V
输出电压 4.5V ~ 8V
供电电流 2.5 A
输出功率 5 W
输入电压Max 20 V
输出电流Max 1.5 A
输出功率Max 5 W
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 10V
安装方式 Surface Mount
引脚数 42

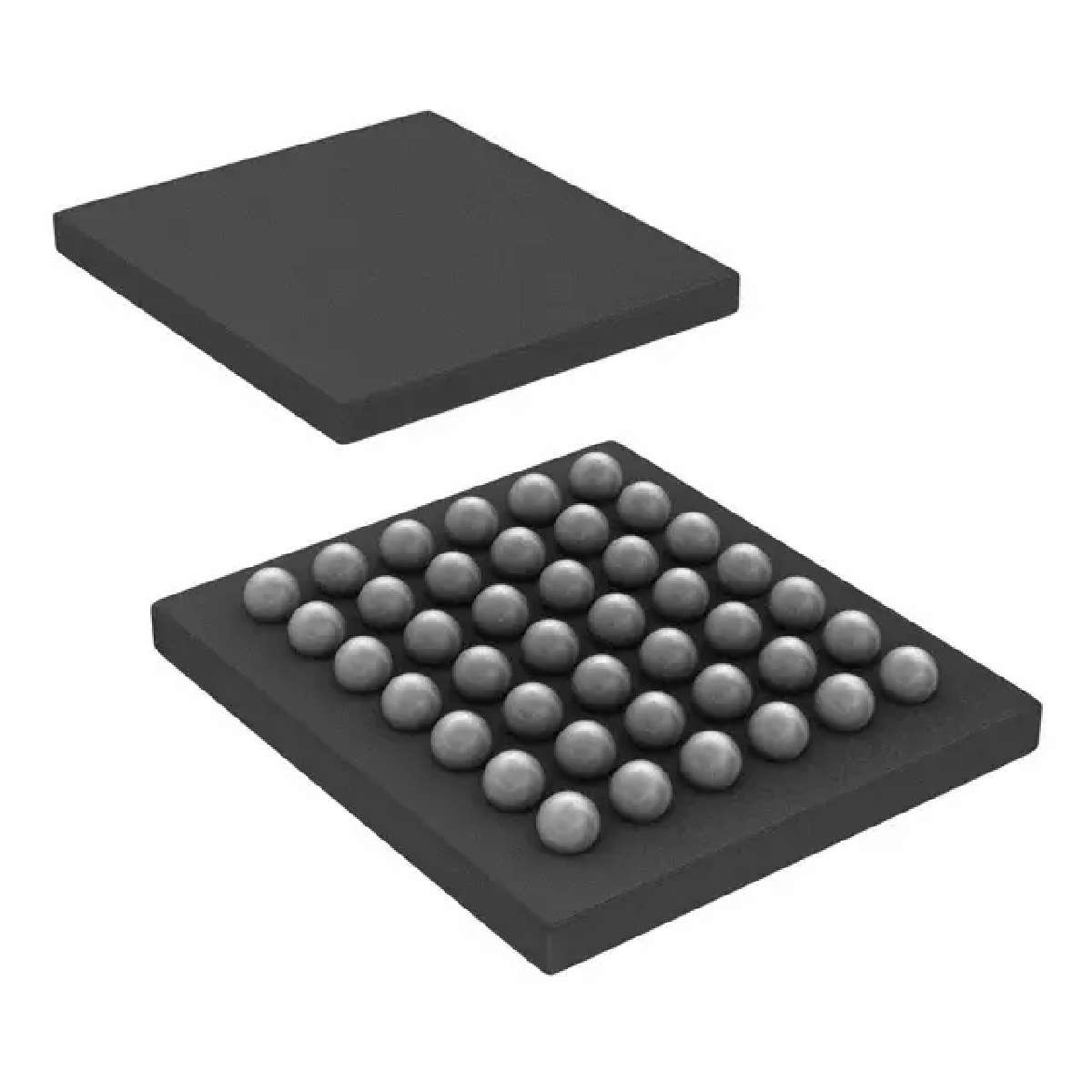

封装 XFBGA-42
高度 0.31 mm
封装 XFBGA-42
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ51021YFPR TI 德州仪器 | 当前型号 | 当前型号 |
BQ51021YFPT 德州仪器 | 完全替代 | BQ51021YFPR和BQ51021YFPT的区别 |
