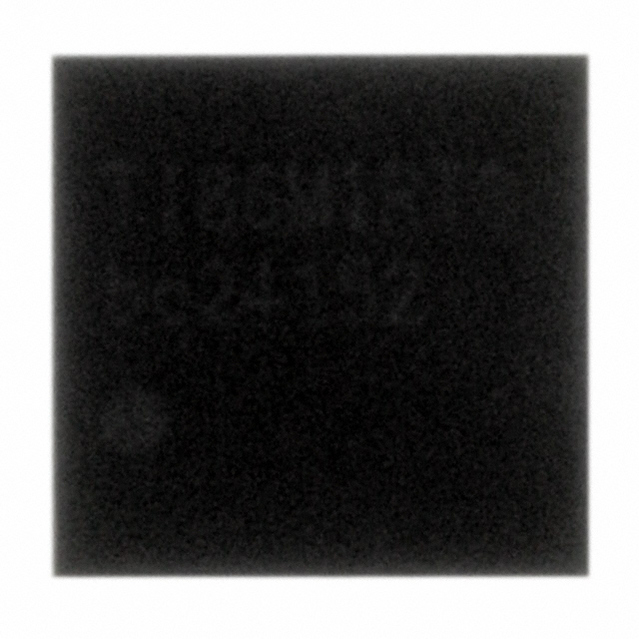

完全集成开关模式单节锂离子电池充电器与USB完全遵守和USB -OTG支持 Fully Integrated Switch-Mode One-Cell Li-Ion Charger with Full USB Compliance and USB-OTG Support

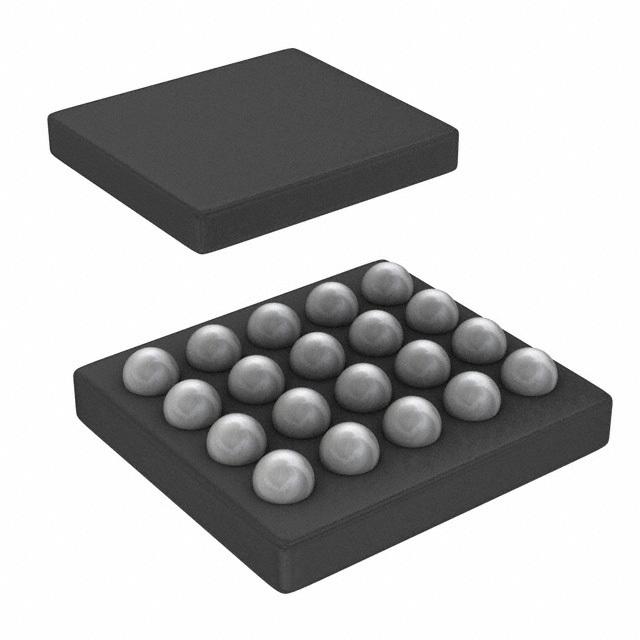

锂离子/聚合物 充电器 IC 20ピンDSBGA(2.1x2)
得捷:
IC BATT CHG LI-ION 1CELL 20DSBGA
立创商城:
BQ24152YFFR
艾睿:
This switch mode charger BQ24152YFFR charge controller from Texas Instruments is an electronic system that manages a set of batteries by protecting the battery from harmful environmental factors, making sure it operates within its safe operating area, and monitoring its state. Its output produces a current of 1250Max mA. With an output that has a voltage of 3.5 to 4.44 V, this is power management at its best. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 4 V and a maximum of 6 V. This device runs on Li-Ion|Li-Pol Packs. This battery gauge has an operating temperature range of -40 °C to 85 °C.
Chip1Stop:
Battery Charge Management Fully Integrated Switch-Mode One-Cell Li-Ion Charger with Full USB Compliance and USB-OTG Support Switch Mode Charger Li-Ion/Li-Pol Packs 1250mA 3.5V to 4.44V 20-Pin DSBGA T/R
Win Source:
IC LI-ION CHARGE MGMT 20-DSBGA
输入电压DC 6.00 V
输出电压 3.5V ~ 4.44V
耗散功率 540 mW
开关频率 3.00 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 540 mW
电源电压 4V ~ 6V
电源电压Max 6 V
安装方式 Surface Mount
引脚数 20
封装 UFBGA-20
封装 UFBGA-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24152YFFR TI 德州仪器 | 当前型号 | 当前型号 |
BQ24150AYFFR 德州仪器 | 完全替代 | BQ24152YFFR和BQ24150AYFFR的区别 |
BQ24152YFFT 德州仪器 | 完全替代 | BQ24152YFFR和BQ24152YFFT的区别 |
BQ24159YFFT 德州仪器 | 完全替代 | BQ24152YFFR和BQ24159YFFT的区别 |
