BQ24192RGET概述

TEXAS INSTRUMENTS  BQ24192RGET  芯片, USB/适配器充电器, 锂离子, 24VQFN

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.

### 电池管理,Texas Instruments


得捷:
IC BATT CHG LI-ION 1CELL 24VQFN


立创商城:
BQ24192RGET


德州仪器TI:
1-cell, 4.5-A, I2C controlled buck battery charger with NVDC Power Path & default pre charge current


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


贸泽:
Battery Management I2C Cntrl 4.5A Sgl


e络盟:
电池充电器, 用于1节锂离子, 锂聚合物电池, 17V输入, 4.208V / 4.5A充电, VQFN-24


艾睿:
Switching Charge Management Li-Ion/Li-Pol 4500mA 3.5V to 4.4V 24-Pin VQFN EP T/R


安富利:
USB/AC Adapter Charger Li-Ion/Li-Pol 4.5mA 3.5V to 4.4V 24-Pin VQFN EP T/R


Chip1Stop:
USB/AC Adapter Charger Li-Ion/Li-Pol 4.5mA 3.5V to 4.4V 24-Pin VQFN EP T/R


Verical:
Switching Charge Management Li-Ion/Li-Pol 4.5mA 3.5V to 4.4V 24-Pin VQFN EP T/R


Newark:
# TEXAS INSTRUMENTS  BQ24192RGET  USB / ADAPTOR CHARGER, LI+, 24VQFN


BQ24192RGET中文资料参数规格
技术参数

输出接口数 1

输入电压DC 17.0 V

输出电压 3.5V ~ 4.4V

输出电流 4.5 mA

针脚数 24

开关频率 1.50 MHz

输入电压Max 17 V

输入电压Min 3.9 V

输出电流Min 500 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 3.9V ~ 17V

输入电压 17 V

封装参数

安装方式 Surface Mount

引脚数 24

封装 VQFN-24

外形尺寸

长度 4.15 mm

宽度 4.15 mm

高度 0.95 mm

封装 VQFN-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 工业, 通信与网络, 音频, 便携式器材

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

BQ24192RGET引脚图与封装图

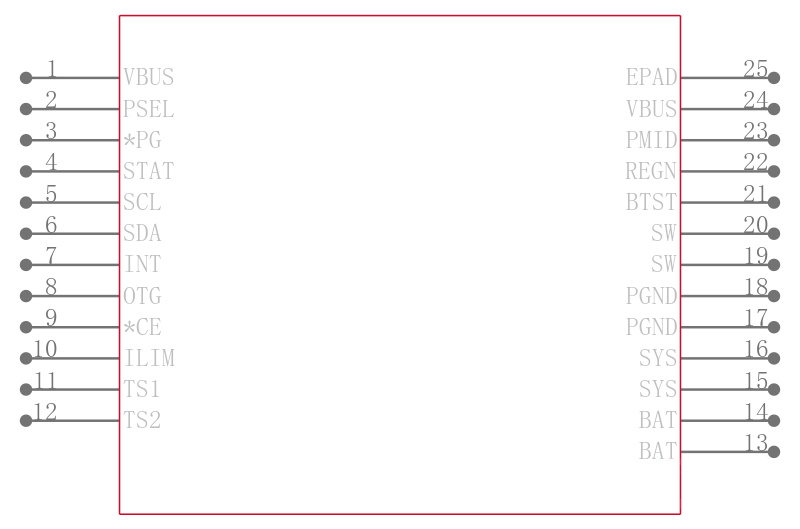

BQ24192RGET引脚图

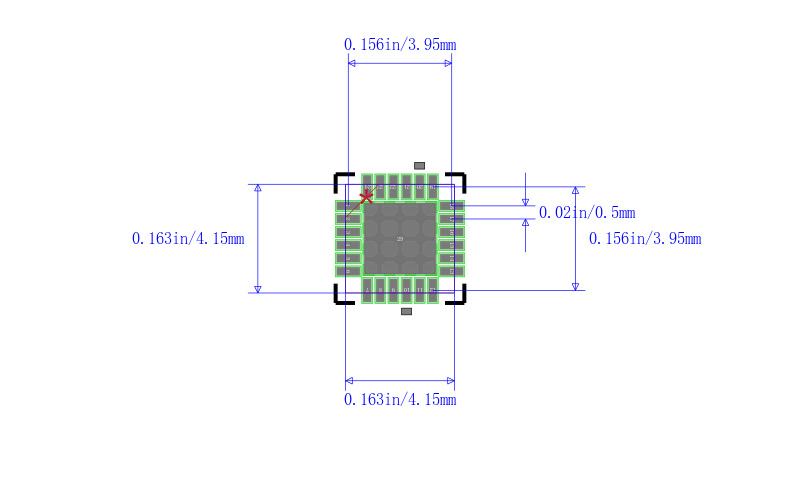

BQ24192RGET封装图

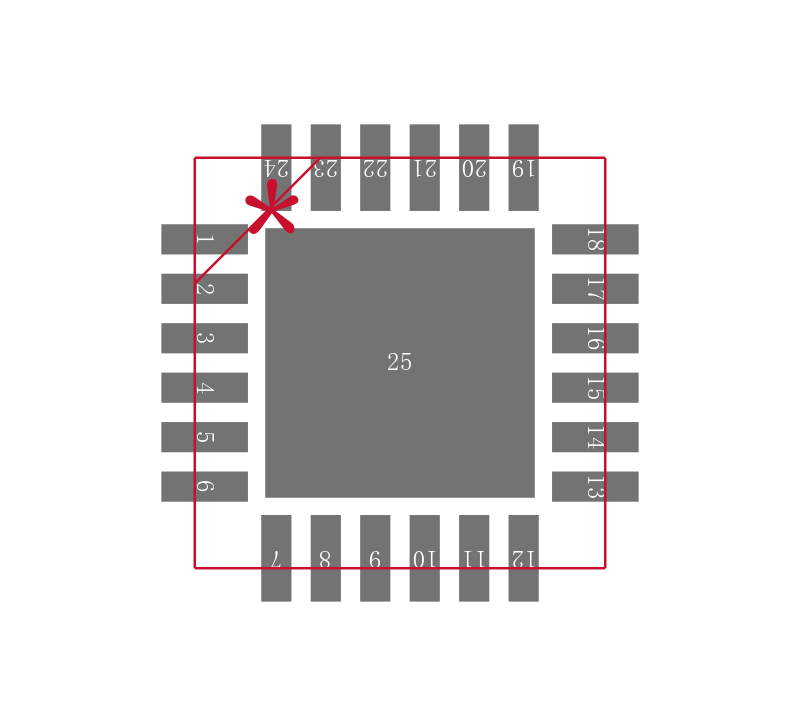

BQ24192RGET封装焊盘图
在线购买BQ24192RGET
型号: BQ24192RGET
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  BQ24192RGET  芯片, USB/适配器充电器, 锂离子, 24VQFN
替代型号BQ24192RGET
型号/品牌 代替类型 替代型号对比

BQ24192RGET

TI 德州仪器

当前型号

当前型号

BQ24192RGER

德州仪器

完全替代

BQ24192RGET和BQ24192RGER的区别
