TEXAS INSTRUMENTS BQ51021YFPT 芯片, 无线电源接收器, 20V, DSBGA-42
Why clutter your home with cables when you can charge wirelessly with this wireless charging device from Texas Instruments. With an output that has a voltage of 4.5 to 8 V and maximum output power of 5 W, this is power management at its best. Use this part at voltages lower than 20 V. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This item should be stored between -65 °C and 150 °C. This wireless charger has an operating temperature range of -40 °C to 125 °C.
电源电压DC 20.0V max
输入电压DC 4.00V ~ 10.0V
输出电压 4.5V ~ 8V
输出电流 1 A
供电电流 2.5 A
针脚数 42
输出功率 5 W
输入电压Max 20 V
输出电流Max 1.5 A
输出功率Max 5 W
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 10V
电源电压Max 20 V
安装方式 Surface Mount
引脚数 42

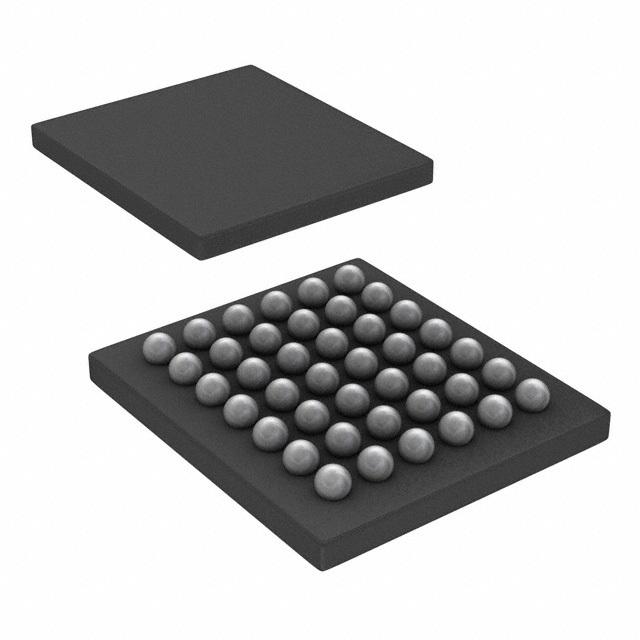

封装 DSBGA-42
封装 DSBGA-42
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BQ51021YFPT TI 德州仪器 | 当前型号 | 当前型号 |
BQ51021YFPR 德州仪器 | 完全替代 | BQ51021YFPT和BQ51021YFPR的区别 |
