BQ77908ADBT

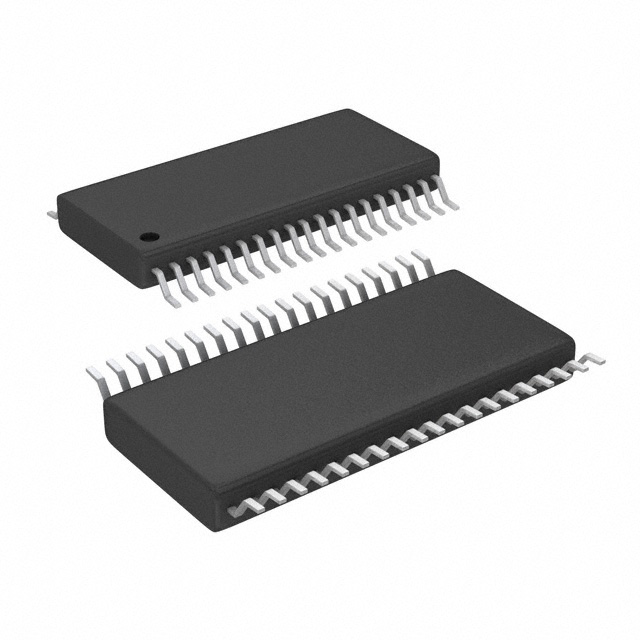

TEXAS INSTRUMENTS  BQ77908ADBT  芯片, 电池保护器, 锂离子/锂聚合物, TSSOP30

Description

The bq77908A is a battery protection and cell balancing device intended for Li-Ion and Li-Polymer battery packs. The bq77908A monitors 4- to 8-series individual cell voltages and provides fast-acting outputs that may be used to drive N-channel MOSFETs to interrupt the power path. Activation delays and recovery methods for safety conditions are fully programmable in non-volatile memory.

Automatic cell balancing is provided using internal 50-mA cell circuits. A robust balancing algorithm ensures optimum performance by maintaining all cell voltages in balance. Balancing may be configured to operate at all times, only during charge, or can be disabled completely.

Features

• 4-, 5-, 6-, 7-, or 8-Series Cell Protection

• Individual Cell-Voltage Monitoring

• Low-Side NMOS FET Drive for Charge and Discharge Control

• Compatible With 1-mΩ Current-Sense Resistor

• Supply-Voltage Range From 5.6 V to 40 V

• Integrated 3.3-V Micro-Power LDO Regulator

• Low Supply Current

   – Normal Mode: 50 µA, Typical

   – Shutdown Mode, LDO OFF: 5 µA, Typical

• 38-Pin TSSOP Package

• Internal 50-mA Automatic Cell Balancing

Applications

• Cordless Power Tools

• Cordless Lawn Equipment

• Electric Bikes

• UPS

• Light Electric Vehicles LEV
