Texas Instruments### 电池管理,Texas Instruments
多化学电池充电控制器,Texas Instruments
得捷:
IC BAT CHG MULTCHEM 2-4CL 28VQFN
立创商城:
BQ24750ARHDT
德州仪器TI:
Host controlled 2-4 cell Buck battery charge controller with integrated system power selector
欧时:
Texas Instruments BQ24750ARHDT 铅酸、锂离子、锂聚合物、镍镉、镍氢 电池充电器, 10A最大输出
艾睿:
This battery charger BQ24750ARHDT charge controller from Texas Instruments is an electronic system that manages a set of batteries by protecting the battery from harmful environmental factors, making sure it operates within its safe operating area, and monitoring its state. Its output produces a current of 10000Max mA. With an output that has a voltage of 8 to 18.048 V, this is power management at its best. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 155 °C. This device has a minimum operating supply voltage of 5 V and a maximum of 24 V. This device runs on Li-Ion.
安富利:
Battery Charger Li-Ion 10000mA 8V to 18.048V 28-Pin VQFN EP T/R
Chip1Stop:
Battery Charge Management Host-controlled Multi-chemistry Battery Charger w/Integrated Sys Power Selector Battery Charger Li-Ion 10000mA 8V to 18.048V 28-Pin VQFN EP T/R
Verical:
Switching Battery Charger Controller Li-Ion/Li-Pol 10000mA 8V to 18.048V 28-Pin VQFN EP T/R
DeviceMart:
IC SYNC BATTERY CHARGER 28QFN
输出电压 8V ~ 18.048V
输出电流 10 A
开关频率 300 kHz
输出电压Max 18.048 V
输出电压Min 8 V
输出电流Max 10 A
工作温度Max 155 ℃
工作温度Min -40 ℃
电源电压 5V ~ 24V
安装方式 Surface Mount

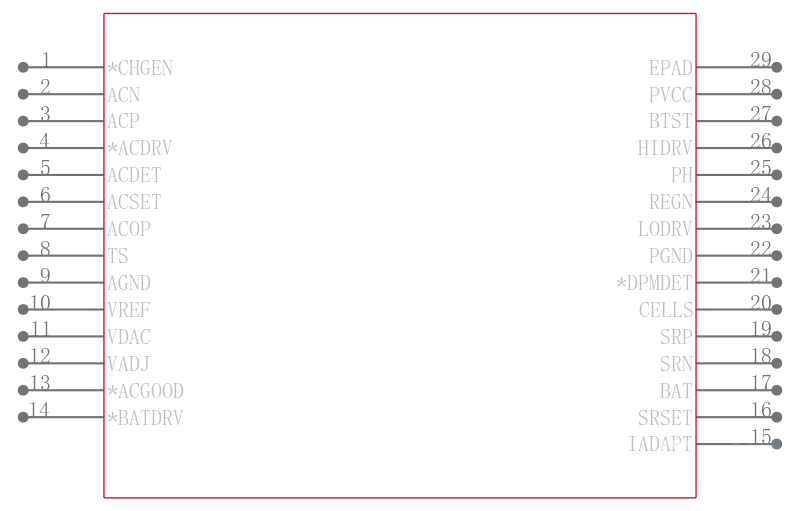

引脚数 28

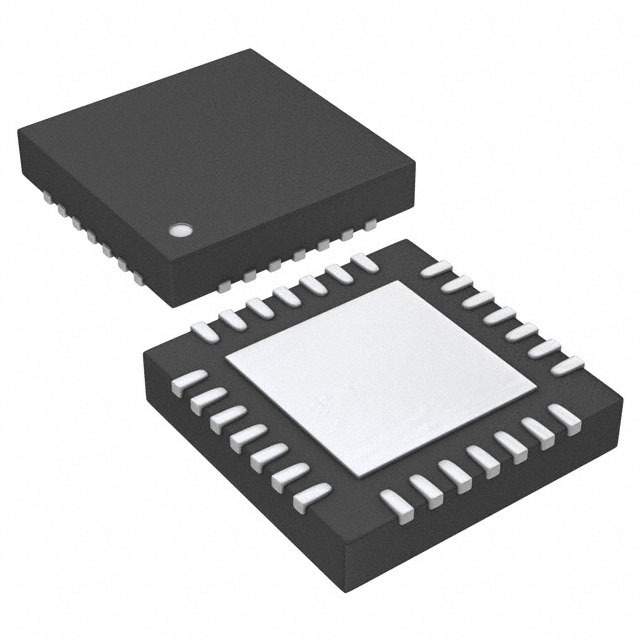

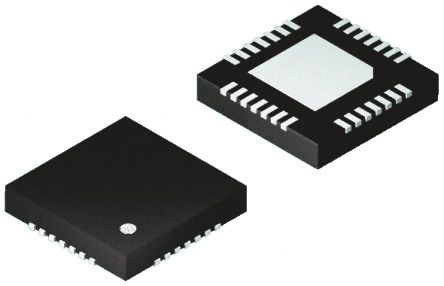

封装 VQFN-28

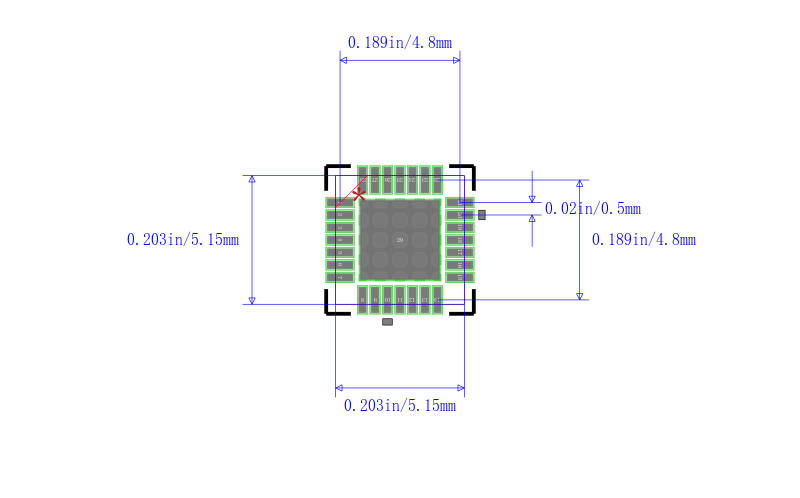

长度 5.15 mm
宽度 5.15 mm
高度 0.95 mm
封装 VQFN-28
工作温度 -40℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24750ARHDT TI 德州仪器 | 当前型号 | 当前型号 |
BQ24750ARHDR 德州仪器 | 类似代替 | BQ24750ARHDT和BQ24750ARHDR的区别 |
