BQ24125RHLT概述

TEXAS INSTRUMENTS  BQ24125RHLT  芯片, 电池充电器, 2A, QFN-20

This smart battery monitoring charge controller from Texas Instruments operates to optimize your battery"s performance. Its output produces a current of 2000Max mA. With an output that has a voltage of 2.1 to 15.5 V, this is power management at its best. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 4.35 V and a maximum of 16 V. This device runs on Li-Ion. This battery gauge has an operating temperature range of -40 °C to 85 °C.

BQ24125RHLT中文资料参数规格
技术参数

输入电压DC 16.0 V

输出电压 2.1V ~ 15.5V

输出电流 2000 mA

针脚数 20

开关频率 1.10 MHz

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 4.3 V

输入电压 16 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 VQFN-20

外形尺寸

长度 4.5 mm

宽度 3.5 mm

高度 0.9 mm

封装 VQFN-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

BQ24125RHLT引脚图与封装图
BQ24125RHLT引脚图
BQ24125RHLT封装图

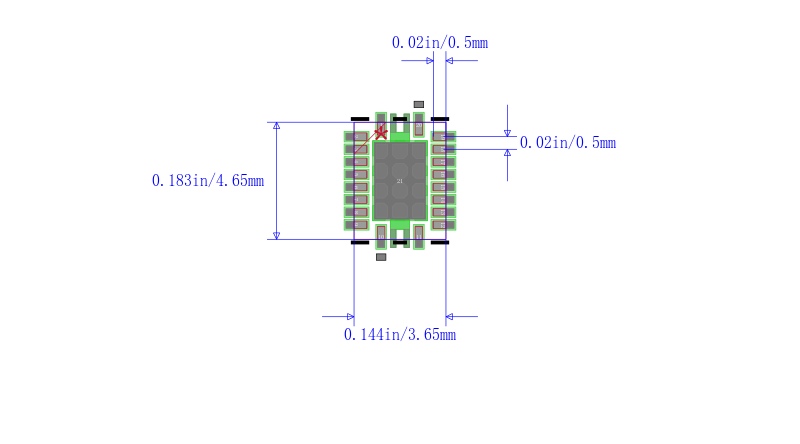

BQ24125RHLT封装焊盘图
在线购买BQ24125RHLT
型号: BQ24125RHLT
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  BQ24125RHLT  芯片, 电池充电器, 2A, QFN-20
