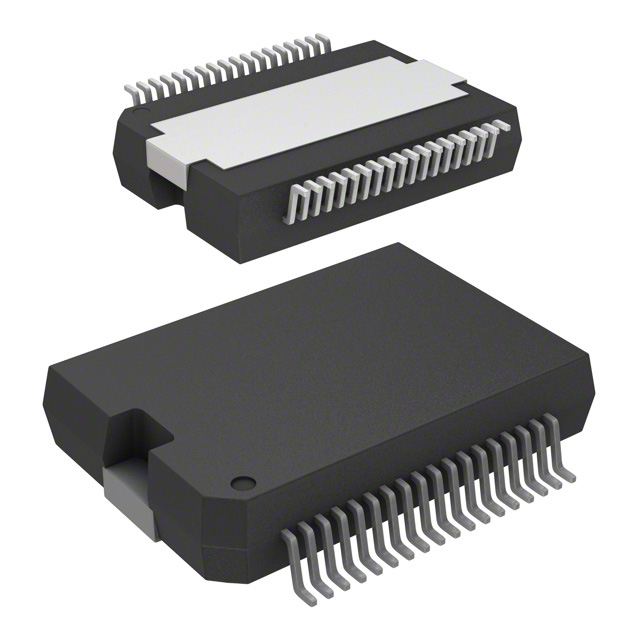

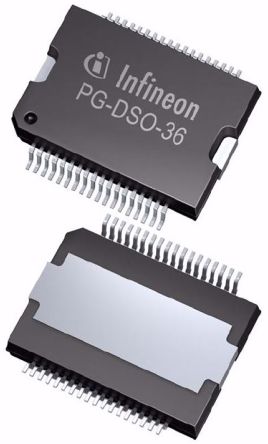

INFINEON BTS4880RAUMA1 智能电源开关, SIPMOS技术, 高压侧, 8路输出, 45V, 1.4A, SOIC-36
工业高侧开关,
Infineon 的一系列单通道和多通道保护智能高侧 NMOS 电源开关
得捷:
IC PWR SWITCH N-CHAN 1:1 DSO-36
立创商城:
BTS4880RAUMA1
欧时:
Infineon BTS4880RAUMA1 8输出 智能电源开关, 高侧电源开关, -1 → 45V, 36引脚 DSO封装
贸泽:
Power Switch ICs - Power Distribution 200mOhms
e络盟:
智能电源开关, SIPMOS技术, 高压侧, 8路输出, 45V, 1.4A, SOIC-36
艾睿:
It&s;s easy to keep your circuit safe from high voltages with this simple high side BTS4880RAUMA1 power switch by Infineon Technologies. This charge controller has 8 outputs. This charge controller has an input voltage of -10 to 45 V. This device has a maximum power dissipation of 3300 mW. It features 0.27 Ohm switch on resistance. Its maximum power dissipation is 3300 mW. This device has a supply current of 5 mA and a minimum output current of 0.625 A.
安富利:
Power Switch Hi Side 0.7A 36-Pin DSO T/R
Verical:
Power Switch Hi Side 0.625A Automotive 36-Pin DSO
Newark:
# INFINEON BTS4880RAUMA1 PWR LOAD SW, HIGH SIDE, 45V, SOIC-36
Win Source:
IC PWR SWITCH N-CHAN 1:1 DSO-36 / Power Switch/Driver 1:1 N-Channel 625mA PG-DSO-36-12
输出接口数 8
输出电流 0.625 A
供电电流 5 mA
针脚数 36
耗散功率 3.3 W
输出电流Min 0.625 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 3300 mW
电源电压Max 45 V
电源电压Min 11 V
输入电压 45 V
安装方式 Surface Mount
引脚数 36
封装 SOIC-36
长度 15.9 mm
宽度 11 mm
高度 3.25 mm
封装 SOIC-36
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Lighting, Decentralized Mirror Module, 照明, Decentralized Light Module, Body Control Module, Seat control, Start&Stop transmission, 电源管理, Power Management, Motor Drive & Control, Infotainment System, 电机驱动与控制, HEV Main Battery Pack
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
