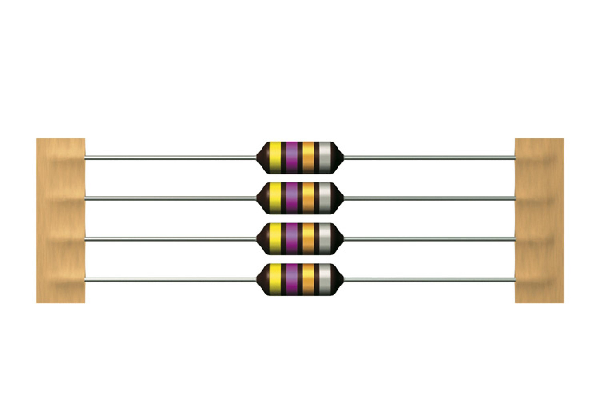

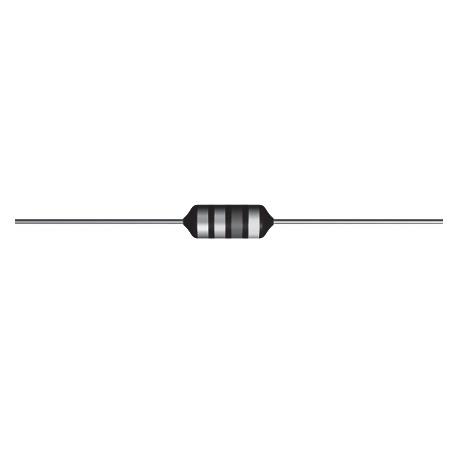

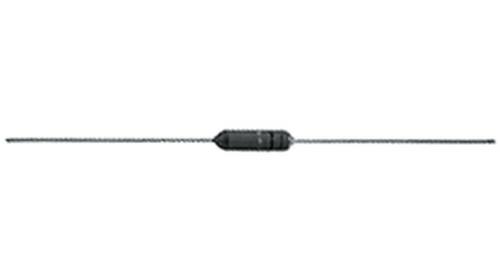

EPCOS B78108S1474J 轴向引线高频电感器, 射频扼流, B78108S BC系列, 470 µH, ± 5%, 7.9 ohm, 170 mA, 2.2 MHz
The is a RF Choke Leaded Inductor, constructed by ferrite drum core, enamel copper wire winding and flame-retardant lacquer coating. Electroplated with nickel and pure tin terminals. Inductance indicated by colour bands to IEC 60062. Suitable for general-purpose application and wave soldering.
- .
- Central axial leads
- .
- 40°C Rated temperature
- .
- ±5% and ±10% tolerance
- .
- Climatic category 55/125/56, IEC 60068-1
- .
- Suitable for wave soldering
- .
- Base material copper
- .
- Electroplated with nickel and pure tin
额定电流 170 mA
容差 ±5 %
电感 470 µH
自谐频率 2.2 MHz
Q值 70.0
电阻 7.90 Ω
共振频率 2.20 MHz
屏蔽 No
电感公差 ±5 %
测试频率 796 kHz
电阻DC） ≤7.9 Ω
额定电流DC 170 mA
电阻DC Max 7.9 Ω
安装方式 Through Hole
引脚数 2
封装 Axial
长度 9.2 mm
宽度 4 mm
直径 4.00 mm
脚长度 25 mm
封装 Axial
重量 380 mg
工作温度 -55℃ ~ 125℃
包装方式 Each
制造应用 Consumer Electronics, RF Communications, 车用, 信号处理, 射频通信, Signal Processing, Automotive, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
