B78108S1154J

EPCOS  B78108S1154J  轴向引线高频电感器, 射频扼流, B78108S BC系列, 150 µH, ± 5%, 2.8 ohm, 280 mA, 4.2 MHz

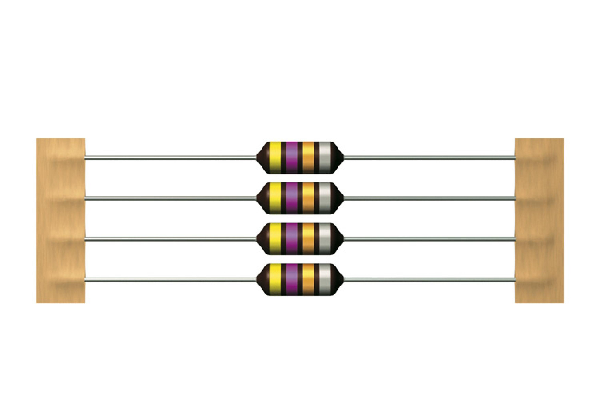

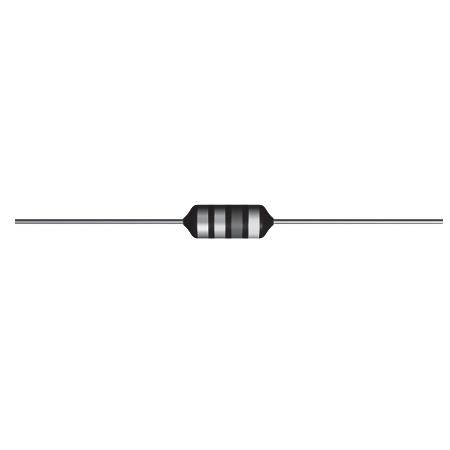

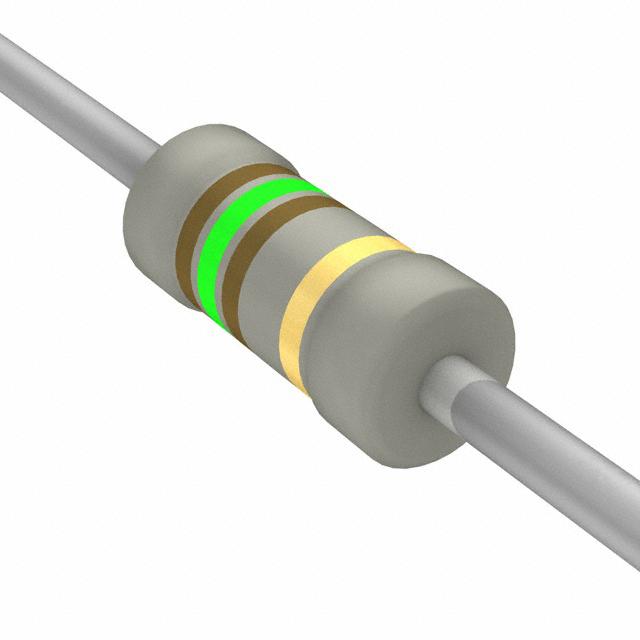

The EPCOS B78108S series are axial leaded bobbin core BC RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding and flame retardant lacquer coating. The B78108S series RF chokes are suitable for RF blocking, filtering, decoupling, interference suppression, antenna systems and energy saving lamps.

.

Selectable inductance value from 1µH to 4700µH

.

Rated current ranges from 55mA to 1.2A

.

±5% and ±10% tolerance

.

Climatic category 55/125/56, IEC 60068-1

.

Suitable for wave soldering

.

Base material copper

.

Electroplated with nickel and pure tin
