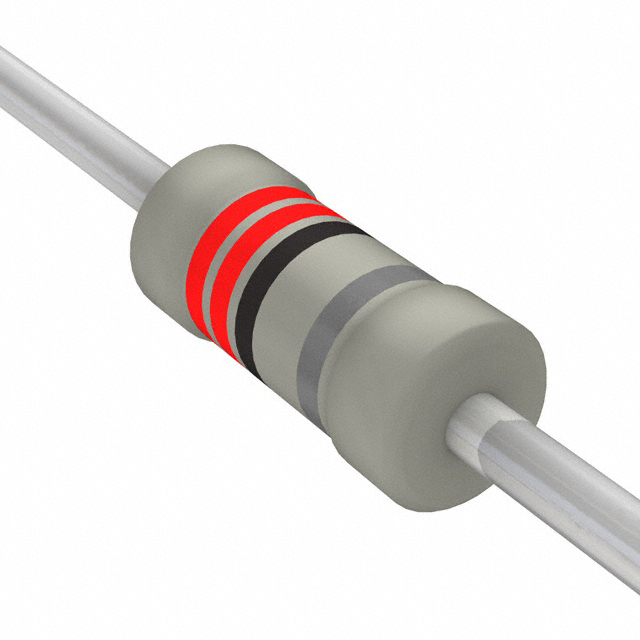

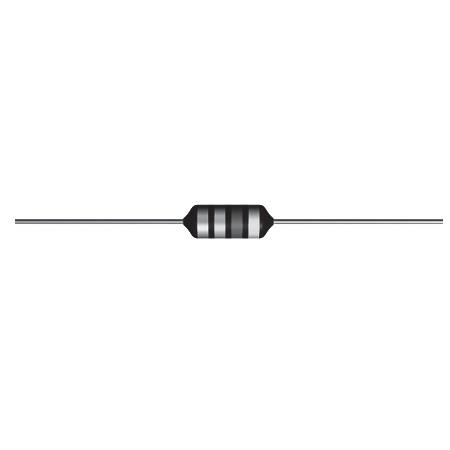

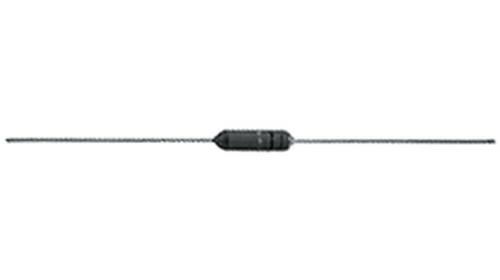

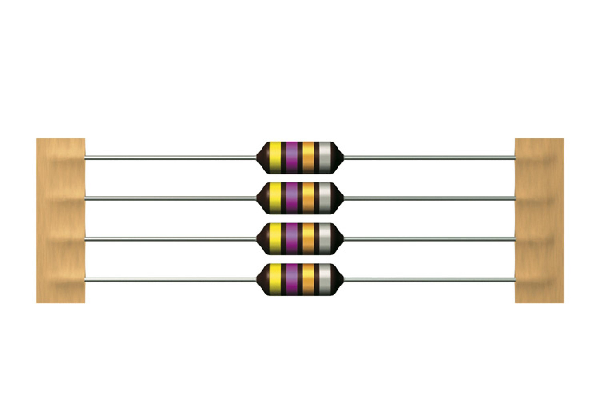

EPCOS B78108S1223K 轴向引线高频电感器, 射频扼流, B78108S BC系列, 22 µH, ± 10%, 0.74 ohm, 560 mA, 13 MHz
The EPCOS B78108S series are axial leaded bobbin core BC RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding and flame retardant lacquer coating. The B78108S series RF chokes are suitable for RF blocking, filtering, decoupling, interference suppression, antenna systems and energy saving lamps.
- .
- Selectable inductance value from 1µH to 4700µH
- .
- Rated current ranges from 55mA to 1.2A
- .
- ±5% and ±10% tolerance
- .
- Climatic category 55/125/56, IEC 60068-1
- .
- Suitable for wave soldering
- .
- Base material copper
- .
- Electroplated with nickel and pure tin
额定电流 560 mA
容差 ±10 %
电感 22 µH
自谐频率 13 MHz
Q值 55.0
电阻 740 mΩ
共振频率 13.0 MHz
屏蔽 No
电感公差 ±10 %
测试频率 2.52 MHz
电阻DC） ≤740 mΩ
额定电流DC 560 mA
电阻DC Max 0.74 Ω
安装方式 Through Hole
引脚数 2
长度 9.2 mm
宽度 4 mm
直径 4.00 mm
脚长度 25 mm
重量 380 mg
工作温度 -55℃ ~ 125℃
包装方式 Each
制造应用 Industrial, 电源管理, Portable Devices, 工业, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B78108S1223K Epcos 爱普科斯 | 当前型号 | 当前型号 |
B78108S1223K000 爱普科斯 | 类似代替 | B78108S1223K和B78108S1223K000的区别 |
9310-44-RC 伯恩斯 | 功能相似 | B78108S1223K和9310-44-RC的区别 |
