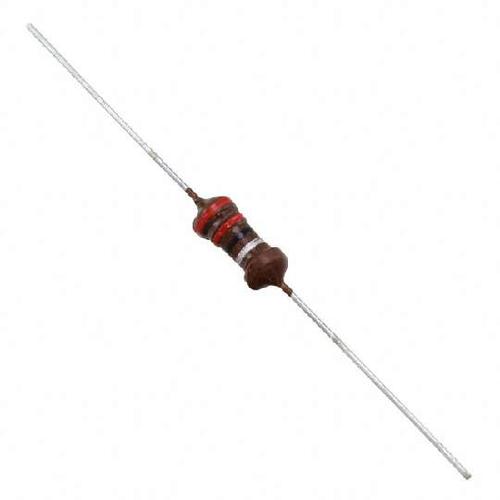

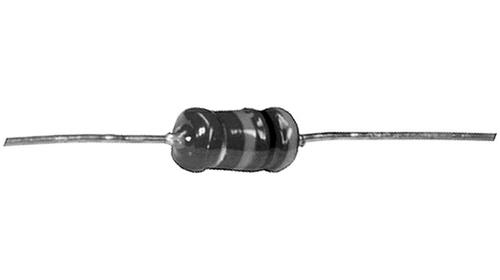

EPCOS B82144A2223K 轴向引线高频电感器, 射频扼流, B82144A LBC系列, 22 µH, ± 10%, 0.35 ohm, 1.1 A, 12 MHz
The B82144A series from EPCOS are axial leaded bobbin core BC RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding. B82144A series RF chokes are suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems and energy saving lamps.
- .
- Wide inductance value ranges from 1µH to 10000µH
- .
- Rated current range from 20mA to 2200mA
- .
- Operating temperature range 40°C
- .
- ±3%, ±5% and ±10% tolerance
- .
- Base material is CuAg0.1
- .
- Compliant to IEC 60062 standards
- .
- Compliant to climatic category IEC 60068-155/125/56
额定电流 1.1 A
容差 ±10 %
电感 22 µH
自谐频率 12 MHz
Q值 50.0
电阻 350 mΩ
共振频率 12.0 MHz
电感公差 ±10 %
测试频率 100 kHz
电阻DC） ≤350 mΩ
额定电流DC 1.1 A
电阻DC Max 0.35 Ω
安装方式 Through Hole
引脚数 2
封装 剪切带
封装 剪切带
工作温度 -55℃ ~ 125℃

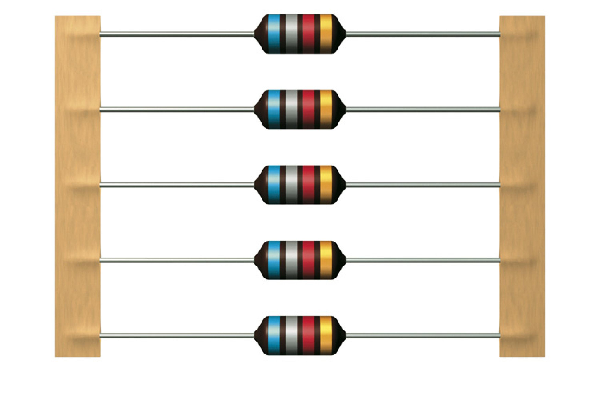

包装方式 Cut Tape CT
制造应用 Automotive, Portable Devices, 车用, Industrial, 工业, 电源管理, 便携式器材, 消费电子产品, Power Management, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B82144A2223K Epcos 爱普科斯 | 当前型号 | 当前型号 |
B82144A2103K 爱普科斯 | 功能相似 | B82144A2223K和B82144A2103K的区别 |
MCAL0410A1-220KU Multicomp | 功能相似 | B82144A2223K和MCAL0410A1-220KU的区别 |
1582 22UH 43A
| 功能相似 | B82144A2223K和1582 22UH 43A的区别 |
