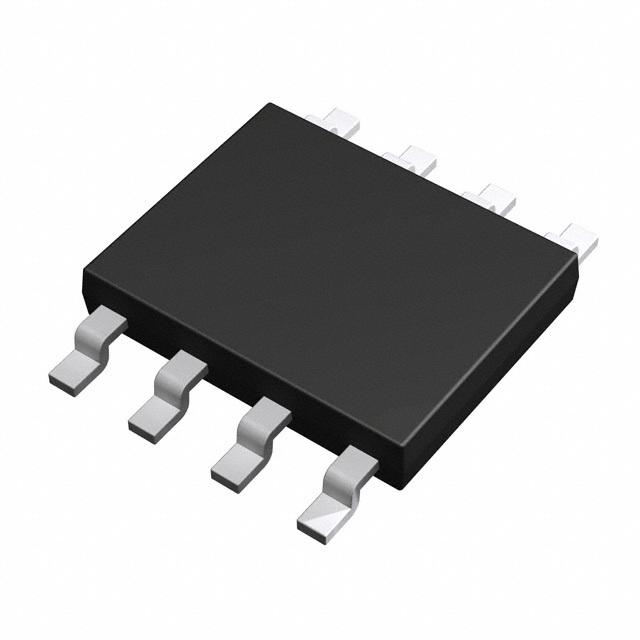

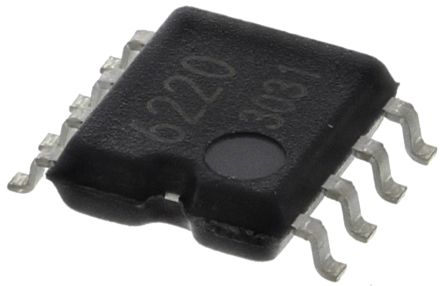

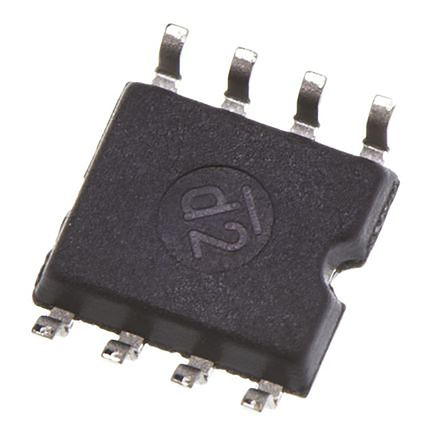

ROHM BD6220F-E2 芯片, H桥驱动器, 18V, 0.5A, SOP8
,ROHM
得捷:
IC MOTOR DRIVER PAR 8SOP
立创商城:
BD6220F-E2
欧时:
ROHM 电机驱动器 IC BD6220F-E2, 用于刷式直流, 0.5A, 6 → 15 V
e络盟:
芯片, H桥驱动器, 18V, 0.5A, SOP8
艾睿:
H-Bridge Motor Driver Automotive 8-Pin SOP T/R
安富利:
ROHM offers a wide lineup of H-bridge drivers in different supply voltages 7V/18V/36V and output currents 0.5A/1A/2A to meet the needs of a variety of applications. Our standard products also contain a VREF variable function that contributes to lower power consumption and greater efficiency. In addition, multiple built-in protection circuits i.e. thermal shutdown, overcurrent, overvoltage protect the IC and load from damage while ensuring a high degree of reliability.
Chip1Stop:
H-Bridge Motor Driver Automotive 8-Pin SOP T/R
Verical:
H-Bridge Motor Driver 8-Pin SOP T/R
Newark:
# ROHM BD6220F-E2 H BRIDGE DRIVER, 18V, 0.5A, SOP8
DeviceMart:
IC H-BRIDGE DRIVER 1CH 0.5A SOP8
电源电压DC 6.00V min
输出接口数 1
输出电流 500 mA
供电电流 1.3 mA
针脚数 8
耗散功率 687 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 687 mW
电源电压 6V ~ 15V
电源电压Max 15 V
电源电压Min 6 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
长度 5 mm
宽度 4.4 mm
高度 1.5 mm
封装 SOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Motor Drive & Control, 电机驱动与控制, DC 电机,通用, Consumer Electronics, 消费电子产品, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BD6220F-E2 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
BD6220F 罗姆半导体 | 功能相似 | BD6220F-E2和BD6220F的区别 |
