BK2515

B&K PRECISION  BK2515  示波器, 2510系列, 2x 隔离, 60 MHz, 1 GSPS, 2 Mpts, 5.8 ns

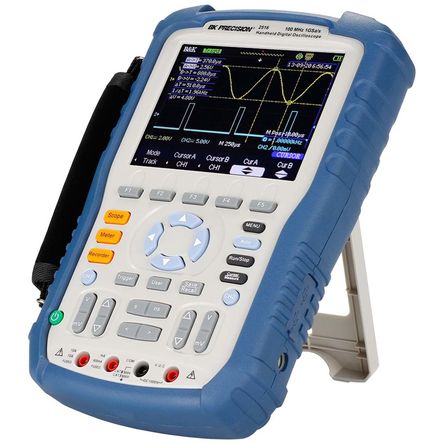

The 2510 Series handheld digital storage oscilloscopes provide floating measurement and recorder capabilities with a built-in digital multimeter DMM, all in one portable and lightweight package. These versatile 60 MHz and 100 MHz bandwidth scopes offer 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. The built-in 6000-count multimeter allows users to quickly switch over from an oscilloscope to a DMM to measure DC/AC voltage and current, resistance, and capacitance, including diode and continuity tests.

.

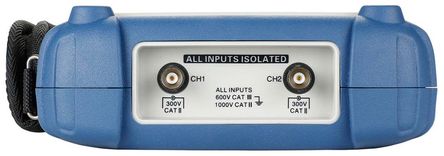

2 fully isolated and floating 1,000 V CAT II, 600 V CAT III rated inputs

.

Built-in 6000-count DMM with dedicated terminals for current measurement

.

Scope and meter trend plot functions for data logging

.

Bright 5.7" colour display

.

FFT including four additional math functions - Add, Subtract, Multiply, and Divide

.

32 automatic measurements

.

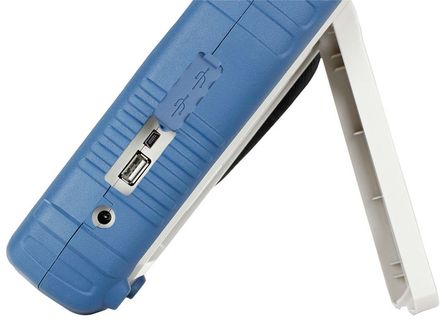

USB host port for saving and recalling waveform setups, data, and screenshots on a USB flash drive

.

Software provided for remote PC control

.

Advanced tools include digital filters with adjustable limits, scope and waveform recorder mode

.

Multi-language user interface

.

Up to four hours of continuous battery operation

.

3 Year Manufacturer Warranty
