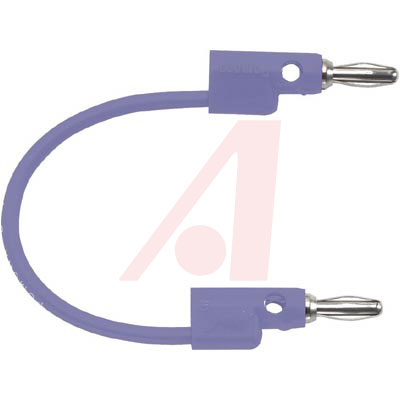

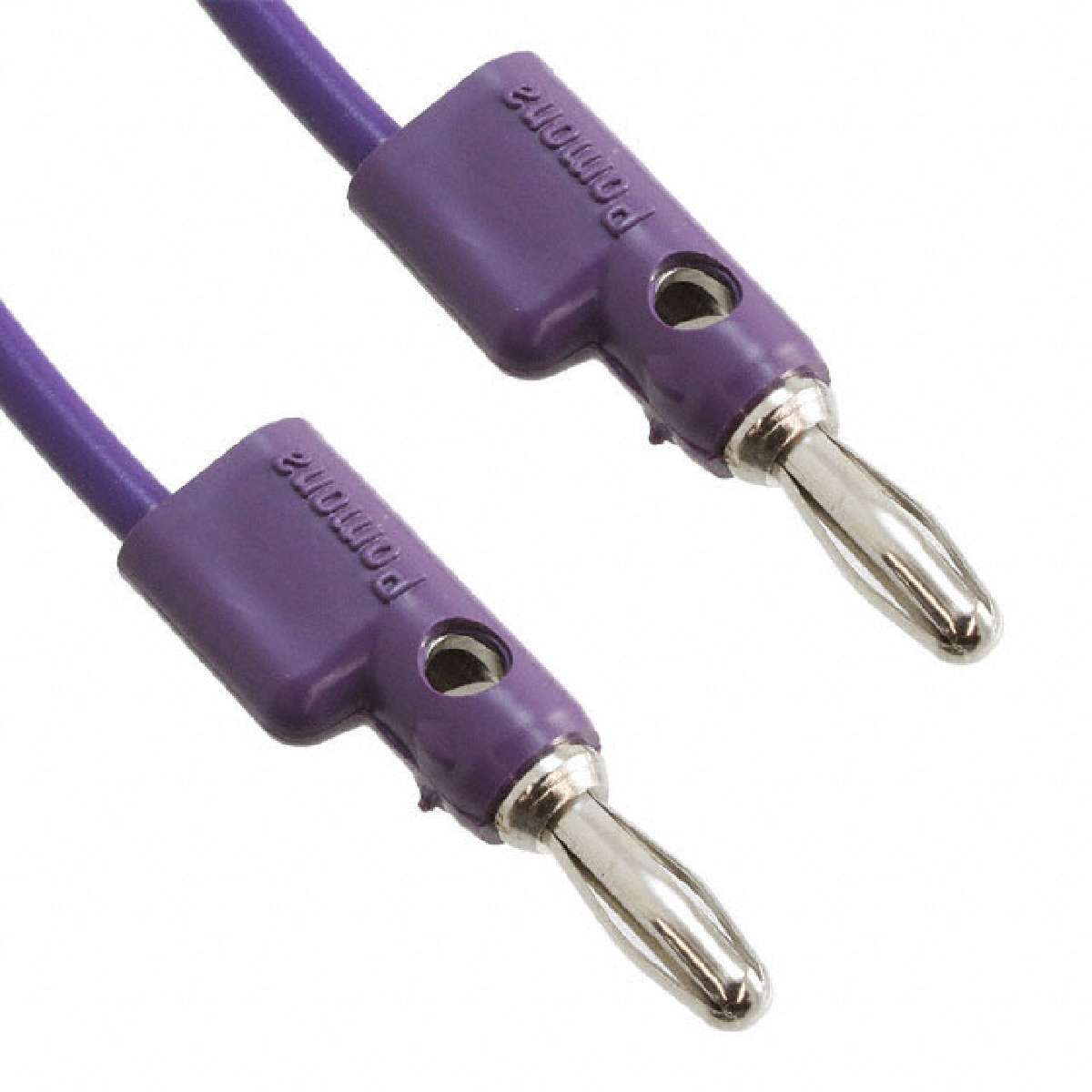

POMONA B-24-7 测试引线, 紫色, 610MM, 60VDC, 15A
The from Pomona is a violet colour stack-up banana plug both ends. It is ideal for providing jumpers on chassis boxes. This banana plug mates with model 1581, 2854 or standard banana Jacks.
-
.
-
Lead length of 24inch 609.6mm
-
.
-
Cross and vertical stacking banana plug
-
.
-
Beryllium copper spring, brass plug body and nickel finish
-
.
-
Polypropylene insulation moulding to plug body and wire
-
.
-
Continuous current of 15A
-
.
-
Maximum operating voltage of 30VAC/60VDC hand held testing and 5000WVDC hands free testing
-
.
-
PVC insulated 18AWG wire with 3.66mm 0.144inch outer diameter
-
.
-
Maximum operating temperature is 55°C 131°F
