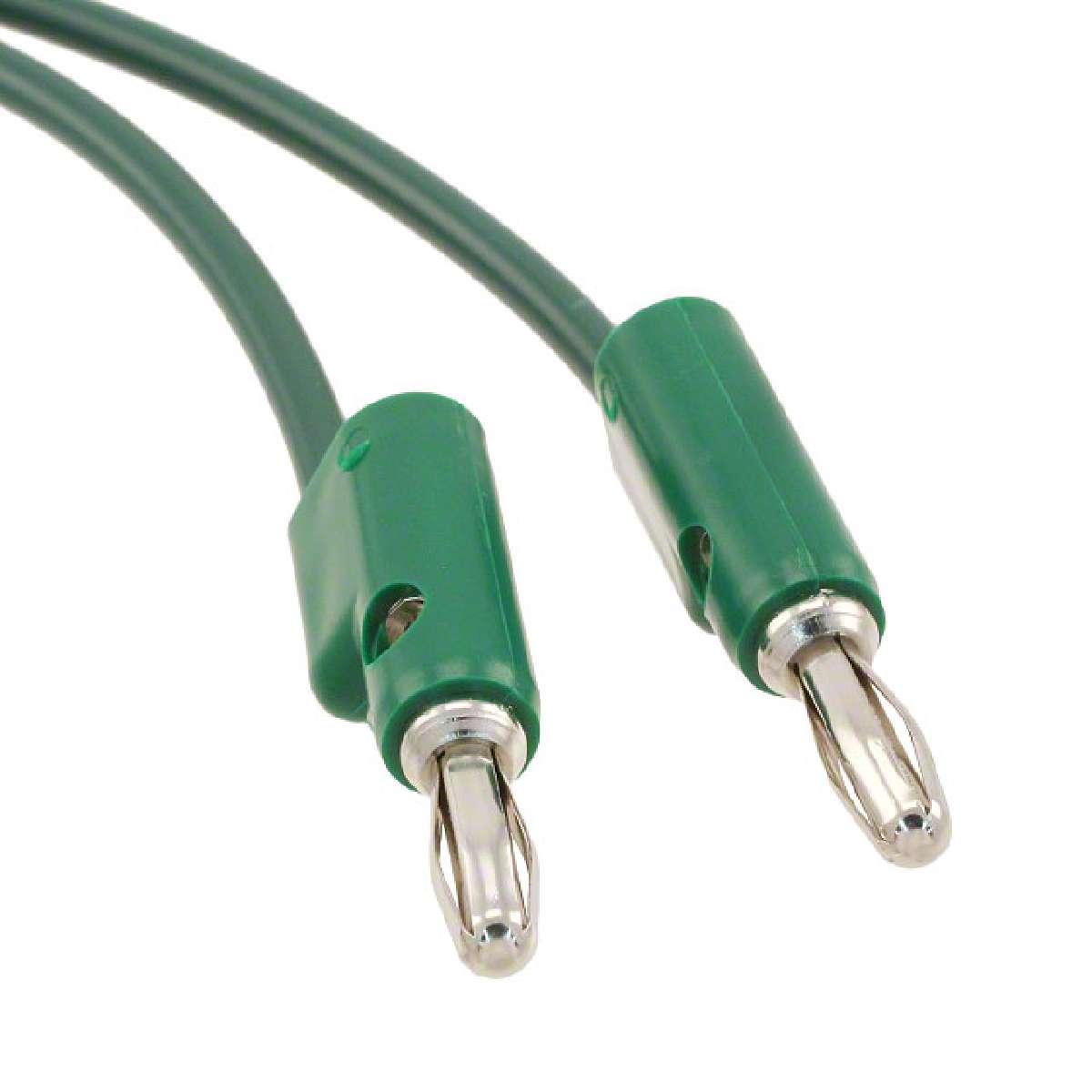

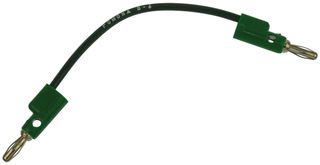

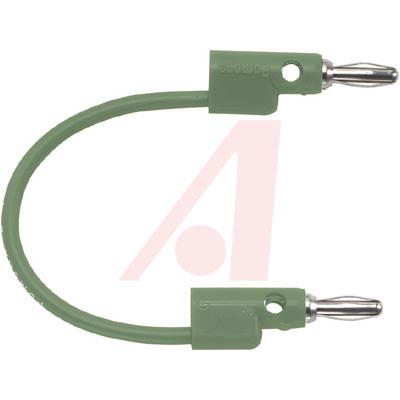

POMONA B-12-5 测试线, 4mm香蕉插头至4mm香蕉插头, 绿色, 60 V, 15 A, 304.8 mm
The is a 12-inch Test Lead with 4mm stack-up banana plug at both ends. The extension stacking banana plug with beryllium copper spring, nickel-plated brass plug body, polypropylene moulded insulation for plug body and wire, 18AWG stranding PVC insulated 3.66-inch outer diameter wire. Ideal for providing jumpers or chassis boxes.
线规 18 AWG
额定电压DC 5.00 kV
额定电流 15 A
额定电流Max 15 A
工作温度Max 55 ℃
额定电压 60 V
长度 12 in
脚长度 304.8 mm
电缆长度 0.304 m
颜色 Green
触点材质 Beryllium Copper
材质 Brass
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业, Test & Measurement, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B-12-5 Pomona Electronics | 当前型号 | 当前型号 |
