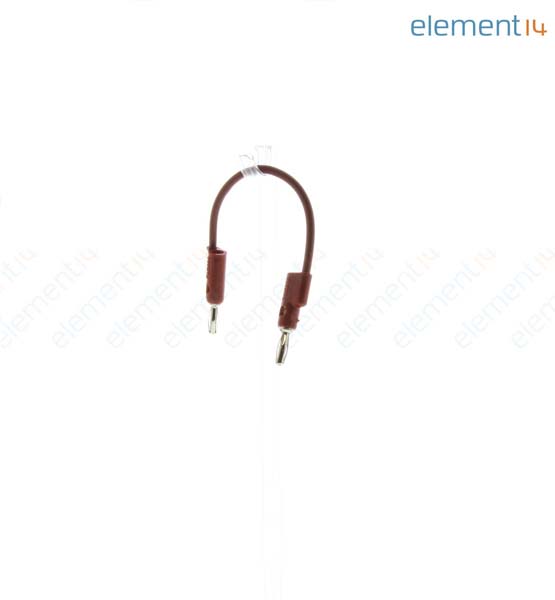

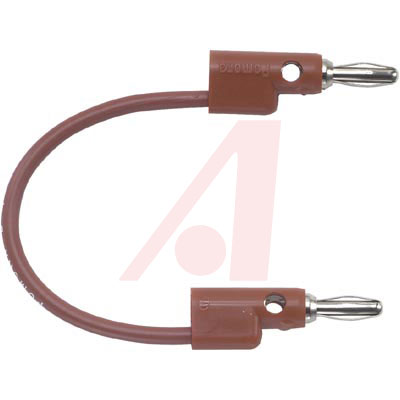

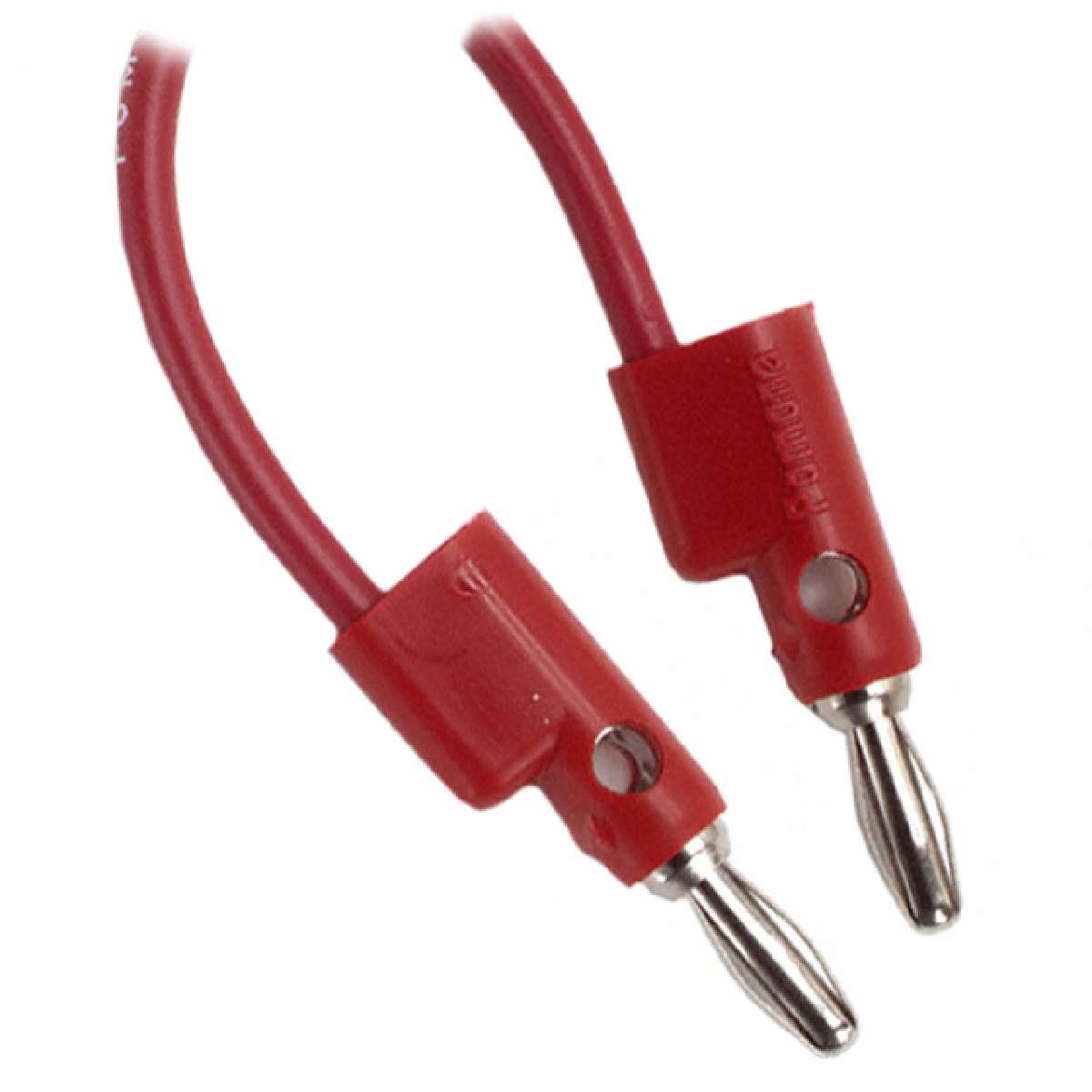

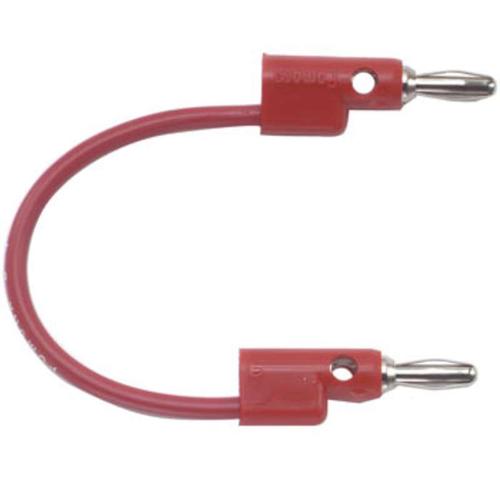

POMONA B-4-2 测试线, 4mm香蕉插头至4mm香蕉插头, 红色, 60 V, 15 A, 101.6 mm
The is a 4-inch Test Lead with 4mm stack-up banana plug at both ends. The extension stacking banana plug with beryllium copper spring, nickel-plated brass plug body, polypropylene moulded insulation for plug body and wire, 18AWG stranding PVC insulated 3.66-inch outer diameter wire. Ideal for providing jumpers or chassis boxes.
- .
- Red insulator
- .
- Cross and vertical stacking banana plug
- .
- 30VAC/60VDC Maximum handheld testing voltage
- .
- 55°C Maximum operating temperature
线规 18 AWG
额定电压DC 5.00 kV
额定电流 15 A
额定电流Max 15 A
工作温度Max 55 ℃
额定电压 60 V
长度 101.6 mm
脚长度 101.6 mm
电缆长度 101.60 mm
颜色 Red
产品生命周期 Active
包装方式 Bulk
制造应用 电子设计, Research & Development, Calibration, 工业, Aerospace, Sound & Video, Test & Measurement, 计算机硬件, Electronics Design, Industrial, Manufacturing, 声音和视频, Computer Hardware, Electrical, 电气, Instrumentation, 生产制造, 研究开发, 仪器仪表, 测试与测量, 航天
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8544429000
