TEXAS INSTRUMENTS BQ24172EVM-706-15V 评估模块, BQ24172EVM-706-15V

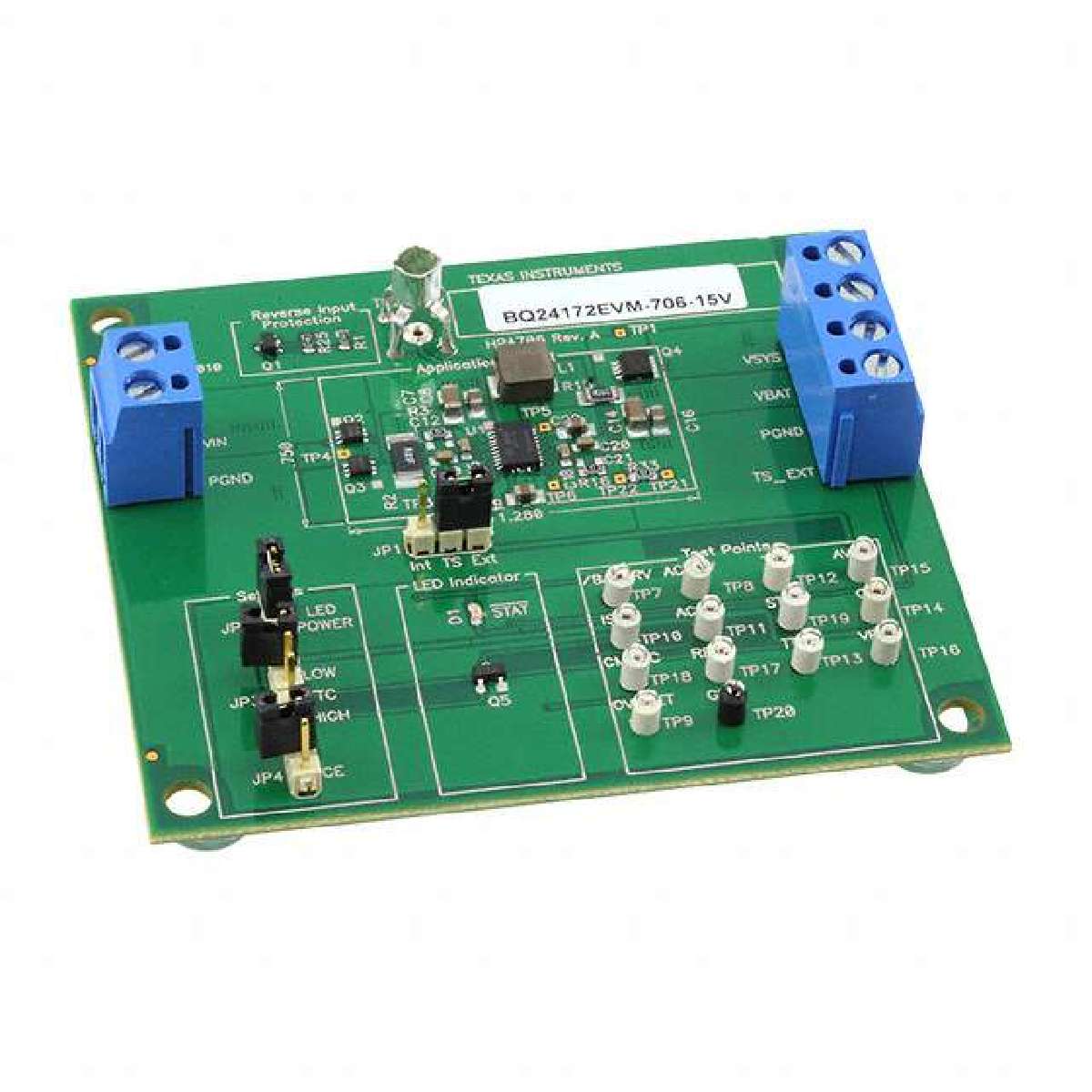

The is an Evaluation Module for evaluate the operation and performance of BQ24172, a 1.6MHz synchronous switch-mode Li-Ion and Li-Polymer battery charger. The board is also called the HPA706 -002. This board is optimized for a 12 or 15V input voltage and charges between 1 and 3 cell Li-Ion batteries. The BQ24172 is a highly integrated stand-alone Li-ion and Li-polymer switch-mode, battery-charge controller with two integrated N-channel power MOSFETs and power path selector gate driver. It offers a constant-frequency synchronous PWM controller with high-accuracy regulation of input current, charge current and voltage. It also provides battery detection, preconditioning, charge termination and charge status monitoring.
- .
- Stand-alone synchronous switch-mode, battery-charge controller
- .
- Integrated N-MOSFETs and power path selector
- .
- Resistor-programmable up to 12.6V battery voltage
- .
- 6 to 18V Input operating range
- .
- LED indication for charge status
- .
- Test points for key signals available for testing purposes - easy probe hook-up
- .
- Jumpers available - easy to change setting
