NXP BZX79-C68,113 单管二极管 齐纳, 68 V, 400 mW, DO-204AH, 5 %, 2 引脚, 200 °C

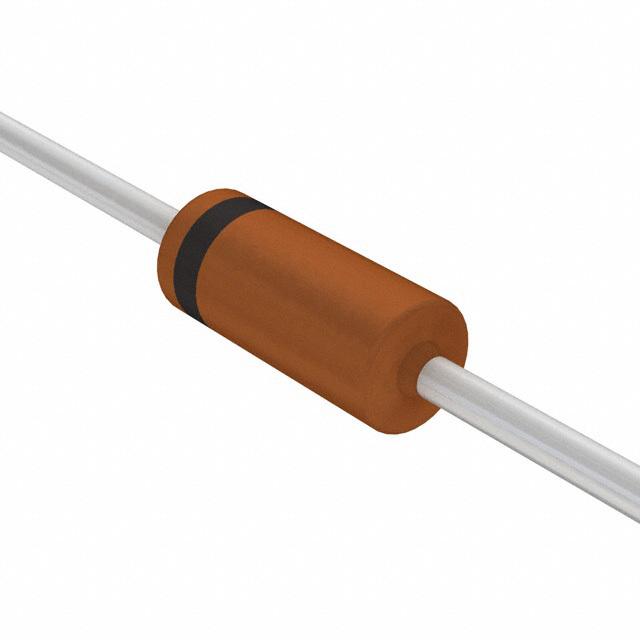

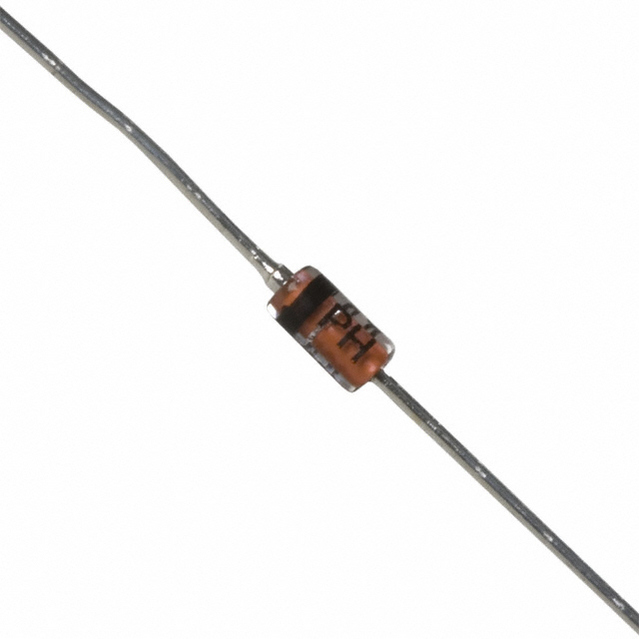

The BZX79 series low-power voltage regulator Zener Diode designed in a hermetically sealed leaded glass SOD27 DO-35 surface-mounted device SMD package. It is suitable for low voltage stabilizers or voltage references.
- .
- ±2% and ±5% Two tolerance series
- .
- 2.4 to 75V E24 range Nominal working voltage range
- .
- 40W Non-repetitive peak reverse power dissipation maximum
容差 ±5 %
针脚数 2
正向电压 900mV @10mA
耗散功率 400 mW
稳压值 68 V
正向电压Max 900mV @10mA
额定功率Max 400 mW
工作温度Max 200 ℃
安装方式 Through Hole
引脚数 2
封装 DO-204AH
封装 DO-204AH
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZX79-C68,113 NXP 恩智浦 | 当前型号 | 当前型号 |
BZX79-C68,133 恩智浦 | 类似代替 | BZX79-C68,113和BZX79-C68,133的区别 |
BZX79-C68,143 恩智浦 | 类似代替 | BZX79-C68,113和BZX79-C68,143的区别 |
BZX79-C68 恩智浦 | 功能相似 | BZX79-C68,113和BZX79-C68的区别 |
