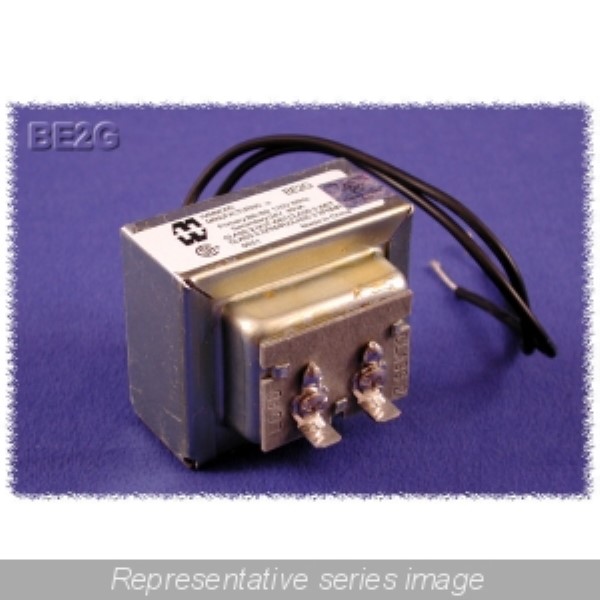

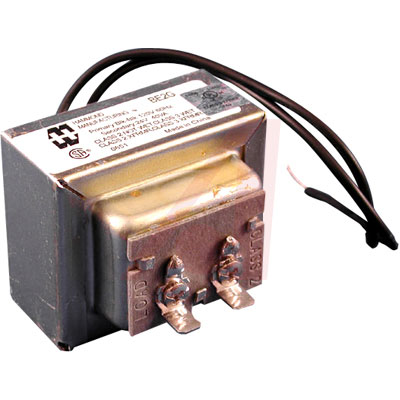

BD2EE

Energy Limiting Transformer 120VAC Primary 14VAC Secondary 1.4A Output 20VA 60Hz 1 Output

**Features:

**

* 105°C Maximum Operating Temperature

* Rugged, Low Noise, Cool Running Design

* Indoor Use Only

* Stripped Wire Input Primary Leads, Screw Terminal/Quick Fit Tab Output Secondary Terminals

* Nipple Locknut Mount for Box Installation

* Input Leads Are Black

* 60 Hz Operation

* Inherently Energy Limited — No Fuses or Circuit Breakers

* CSA Certified #LR 3902 Class 2 Energy Limiting Transformer, Complies with CSA Standard C22.2 #66 Part B

* BD2E and BD2FF UL Listed #E184371
