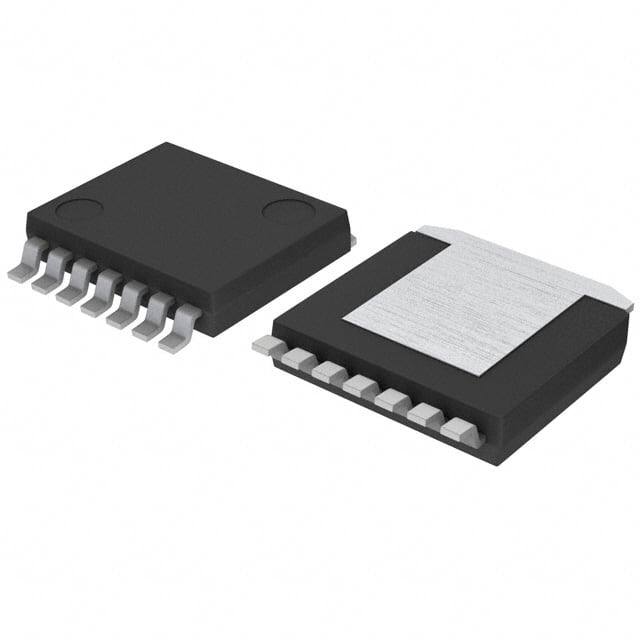

BD6211HFP-TR

ROHM  BD6211HFP-TR  芯片, H桥驱动器, 7V, 1.0 A, HRP7

The is a full H-bridge Driver in supply voltage of 7V and output currents 1A to meet the needs of a variety of applications. It contains a VREF variable function that contributes to lower power consumption and greater efficiency. In addition multiple built-in protection circuits protect the IC and load from damage while ensuring a high degree of reliability. This highly efficient H-bridge driver IC facilitates low-power consumption design.

.

Built-in one channel configuration

.

VREF Voltage setting pin enables PWM duty control

.

Cross-conduction prevention circuit

.

Low standby current

.

OCP, OVP, TSD and UVLO four protection circuits provided
