TEXAS INSTRUMENTS BQ78PL116RGZT 芯片, 电池电量检测计, 锂离子, 4.5V, VQFN-48
多化学电池充电控制器,Texas Instruments
### 电池管理,Texas Instruments
得捷:
IC BAT MFUNC LI-ION 3-16C 48VQFN
立创商城:
BQ78PL116RGZT
德州仪器TI:
PowerLAN Master gateway controller with PowerPump cell Balancing technology
欧时:
Texas Instruments BQ78PL116RGZT 电池充电控制器, 2.5 → 4.5 V电源, 48引脚 VQFN封装
贸泽:
Battery Management PowerLAN Master Gateway Controller
艾睿:
Keeping your battery safe has never been easier with this battery management BQ78PL116RGZT charge controller from Texas Instruments which monitors the state of the battery, calculating data, and optimizing performance. Its typical operating supply voltage is 3.6 V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device runs on Li-Ion. This battery gauge has an operating temperature range of -40 °C to 85 °C. This device has a typical operating supply voltage of 3.6 V. Its minimum operating supply voltage of 2.5 V, while its maximum is 4.5 V.
安富利:
Battery Management Controller Li-Ion 48-Pin VQFN EP T/R
Chip1Stop:
Battery Management Controller Li-Ion 48-Pin VQFN EP T/R
Verical:
Battery Management Controller Li-Ion 48-Pin VQFN EP T/R
Newark:
BATTERY GAS GAUGE, LI-ION, 4.5V, VQFN-48
DeviceMart:
IC BATTERY MGMT CTRLR 48VQFN
Win Source:
IC BATTERY MGMT CTRLR 48VQFN
电源电压DC 2.50V min
输出电压 0.4 V
针脚数 48
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 4.5V
电源电压Max 4.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 48

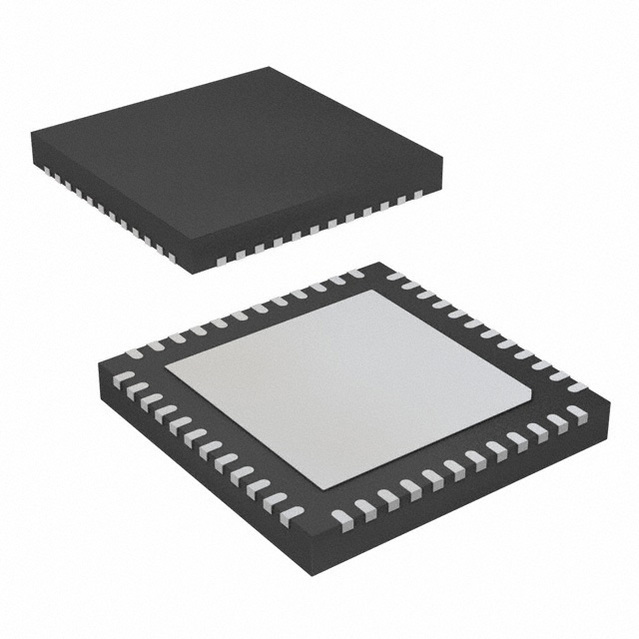

封装 VQFN-48
长度 7.15 mm
宽度 7.15 mm
高度 0.95 mm
封装 VQFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 车用, 医用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ78PL116RGZT TI 德州仪器 | 当前型号 | 当前型号 |
BQ78PL116RGZR 德州仪器 | 完全替代 | BQ78PL116RGZT和BQ78PL116RGZR的区别 |
TPS65185RSLR 德州仪器 | 类似代替 | BQ78PL116RGZT和TPS65185RSLR的区别 |
TPS65185RGZR 德州仪器 | 类似代替 | BQ78PL116RGZT和TPS65185RGZR的区别 |
