BQ40Z50RSMT-R1

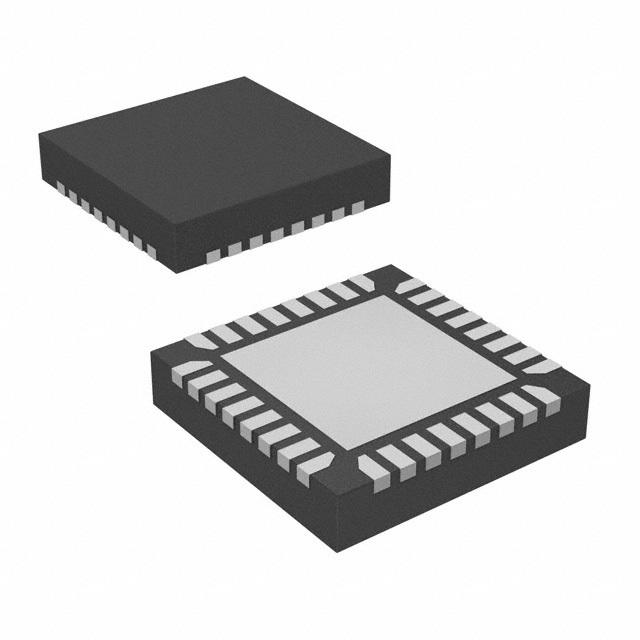

TEXAS INSTRUMENTS  BQ40Z50RSMT-R1  芯片, 电池计量/管理器, 锂离子/聚合物, VQFN-32

The is a Li-ion Battery Fuel Gas Gauge incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection and authentication for 1-series, 2-series, 3-series and 4-series cell Li-ion and Li-polymer battery packs. Using its integrated high-performance analog peripherals, the BQ40Z50-R1 device measures and maintains an accurate record of available capacity, voltage, current, temperature and other critical parameters in Li-ion or Li-polymer batteries and reports this information to the system host controller over an SMBus v1.1 compatible interface. This device supports TURBO BOOST mode by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the pre-set state of charge thresholds.

.

High side N channel protection FET drive

.

Integrated cell balancing while charging or at rest

.

Sophisticated charge algorithms

.

Supports TURBO BOOST mode

.

Supports battery trip point BTP

.

Diagnostic lifetime data monitor and black box recorder

.

LED display

.

Supports two-wire SMBus v1.1 interface

.

SHA-1 Authentication

.

Green product and no Sb/Br
